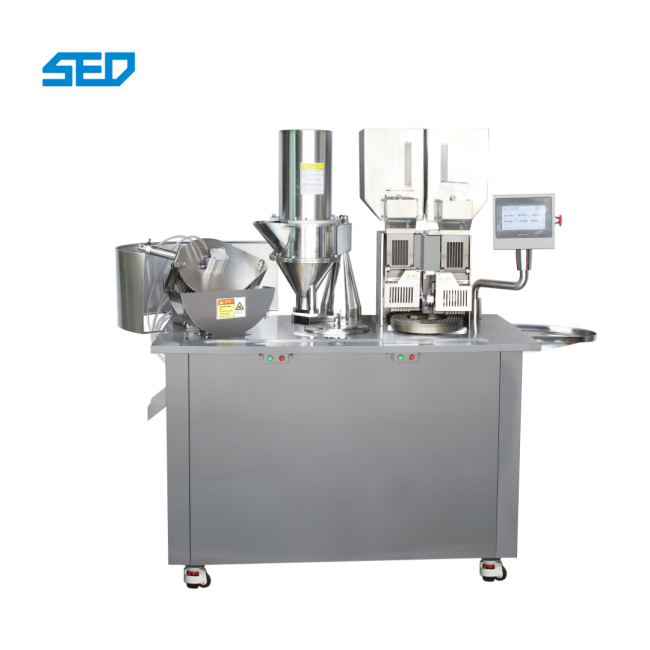

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
Product Description of Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine is a high-efficiency pharmaceutical equipment designed for medium-scale production in the pharmaceutical, nutraceutical, and health supplement industries. Featuring two independently controlled filling heads, this machine provides precise and fast capsule filling, significantly improving production efficiency while ensuring consistent product quality.
Ideal for laboratories, small to medium enterprises, or production lines that require flexible output, this semi-automatic capsule filler combines high precision, reliability, and cost-effectiveness.
Detailed Parameters of Capsule Filling Machine
|
Model |
SED-BJ-IV |
|
Capsule Size |
#00 – #4 |
|
Total Power |
2.12 KW |
|
Output Capacity |
10,000–35,000 capsules/hour |
|
Filling Material |
Small dry granules (non-sticky) |
|
Air Consumption |
0.03 m³/min, 0.7 MPa |
|
Net Weight |
420 kg |
|
Gross Weight |
480 kg |
|
Machine Dimensions |
1140 × 780 × 1600 mm |
|
Packing Dimensions |
1650 × 800 × 1750 mm |
Features of Capsule Filling Machine

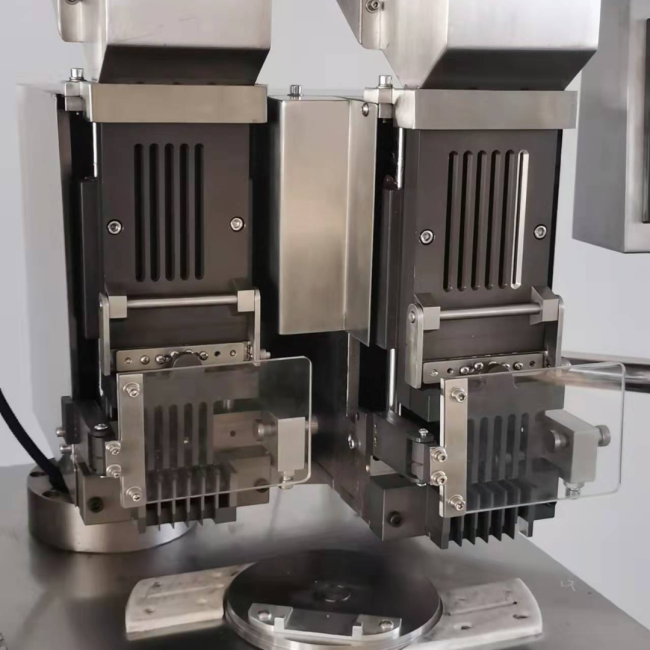

Equipped with two independently controlled filling heads for simultaneous material processing.
Adjustable parameters, including filling volume and speed, to accommodate different production requirements.
Advanced servo motors and precision metering pumps ensure accurate and consistent capsule filling.
Supports multiple filling modes, including quantitative filling and continuous filling.
Compatible with different molds and hoppers for various capsule sizes (#00–#4).
Touchscreen control system for intuitive and easy operation.
Hygienic & GMP Compliant Design
Stainless steel construction for easy cleaning and maintenance.
Equipped with multiple safety protections, including overload protection and emergency stop buttons.
Complies with international safety standards.
Product Detail
Application of Capsule Filling Machine
