100T/D Fluting Paper Machine 3200mm Kraft Paper Making Machine
Description
This 3200 1ply wire kraft paper making machine produces high strength fluting paper and craft paper based on the weight of 190-180g/m². This machine consists of 1ply wire forming section, press section, dryer section, paper reeling section, base section and auxiliary system etc.
This is high configural machine with reasonable design, which when design we put paper quality, capaicty, energy saving, reduce operation cost at the first consideration.
The structure of this 1ply wire kraft paper making machine has been warmly welcomed by several of our customers from different countries.
Main parameters
| 1 | Mainly output | fluting paper, kraft paper |
| 2 | Basic weight | 90—180g/m2 |
| 3 | Net paper width | 3200mm (after rewinder) |
| 4 | Capacity | 100T/D |
| 4 | Working speed | 220m/min. |
| 5 | Design speed | 250m/min. |
| 6 | Layout | 2 floors |
1ply wire paper making machine structure
| Forming section | Air cushion headbox |
| Press section | K press + jumbo roll press |
| Dryer section | 22sets dryer cylinder |
| Reeling section | Horizontal pneumatic reeling machine |
| Drive system | Section drive with AC variable frequency |

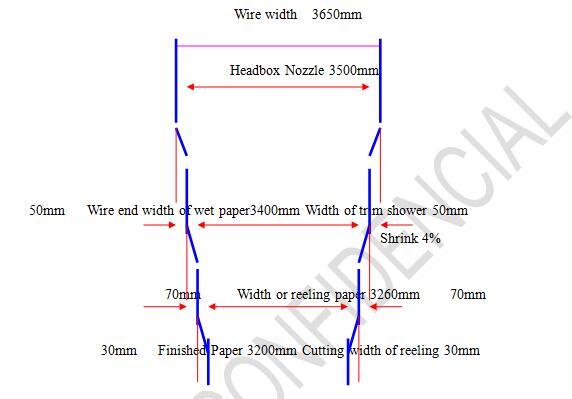

3200 1ply wire kraft paper paper making machine width diagram
