45kw 40m Horizontal Bottom Suction River Clean Water Submersible Pump
Customer case:

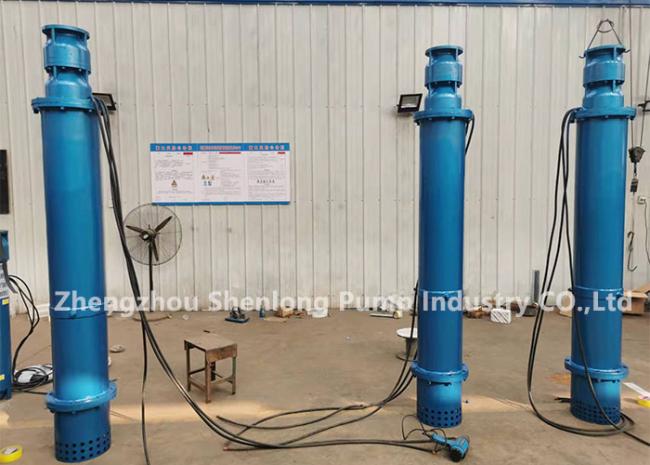

In this October, we have exported our 3 sets water submersible pump to Philippines, applied for farm. The customer would like to pumping clean water from river to pond, therefore, we advice a water submersible pump with motor sleeve type according to his local site.
Motor sleeve for submersible pump features:
1. Accelerating motor cooling, cleaning drainage
Filter screen at the bottom of the casing to prevent solid particles from entering the pump body, protecting the pump
Submersible pump models to Philippines:
1. Flow rate: 230m3/h
2. Head meters: 40m
3. Power: 45kw 60hp
4. Power supply: AC 3phase, electricity
5. Application: farm
45kw submersible pump models:
Cast iron/Bronze/SS304/SS316/SS316L/duplex stainless steel/SS904L, or 380v/440v/660v, both are customzied.
| Model | Power | Flow range | Head range | Outlet Size | |
| QJ type | kw | hp | m3/h | m | 2" |
| 200QJ20-351/26 | 45 | 60 | 20 | 351 | 2" |
| 200QJ20-405/30 | 45 | 60 | 20 | 405 | 3" |
| 200QJ32-286/22 | 45 | 60 | 32 | 286 | 3" |
| 200QJ40-234/18 | 45 | 60 | 40 | 234 | 3" |
| 200QJ50-180/12 | 45 | 60 | 50 | 180 | 3" |
| 200QJ50-195/15 | 45 | 60 | 50 | 195 | 3" |
| 200QJ63-140/10 | 45 | 60 | 63 | 140 | 3" |
| 200QJ63-154/11 | 45 | 60 | 63 | 154 | 3" |
| 200QJ80-110/10 | 45 | 60 | 80 | 110 | 4" |
| 200QJ80-121/11 | 45 | 60 | 80 | 121 | 4" |
| 200QJ100-90/6 | 45 | 60 | 100 | 90 | 4" |
| 200QJ100-105/7 | 45 | 60 | 100 | 105 | 4" |
| 250QJ50-180/9 | 45 | 60 | 50 | 180 | 3" |
| 250QJ50-200/10 | 45 | 60 | 50 | 200 | 3" |
| 250QJ63-160/8 | 45 | 60 | 63 | 160 | 3" |
| 250QJ80-120/6 | 45 | 60 | 80 | 120 | 4" |
| 250QJ100-80/5 | 45 | 60 | 100 | 80 | 4" |
| 250QJ140-75/5 | 45 | 60 | 140 | 75 | 5" |
| 250QJ160-60/4 | 45 | 60 | 160 | 60 | 5" |
| 300QJ240-44/2 | 45 | 60 | 240 | 44 | 6" |
| 350QJ320-30/1 | 45 | 60 | 320 | 30 | 8" |
| 400QJ500-20/1 | 45 | 60 | 500 | 20 | 8" |
Water Submersible Pump from SLAPK vs Other Submersible Pumps Supplier:
1. IP Class: IP68
2. Insulation Class: F
3. Motor Working: S1
4. Winding Type: re-winding, double layer insulation wire PE2+PA
5. Cooling Method: water cooling
6. Medium: less than 50 degree clean water
7. Cable: Submersible cables
The main part material of cast iron submersible pump as below:
1. The pump impeller, pump casing coupling part and motor casing is cast iron material.
2. The pump shaft is stainless steel material.
3. The bearing is graphite.
4. The winding is 100% copper with polyethylene insulation layer.
5. The rotor end ring is copper.
6. The stator casing is with 45# steel.
7. The stator is cold rolling silicon steel.
Zhengzhou Shenlong Pump Industry CO.,Ltd
Zhengzhou Shenlong Pump Industry CO.,Ltd is a competitive reputable OEM&ODM submersible pump manufacturer since 1996 in China.
1. 3 types main casting technique: EPC Process (Expendable pattern casting); Precoated sand casting; Wax precision casting.
2. Fully automated pressing stamping And punching lines with ultimate levels of quality. Production and assembly departments based on German engineering. Be spoke CNC machining department utilizing 3D/2D technology and high precision tools; Professional test stations. R&D department for our continuous drive for perfection of products.
3. We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
