12-120mm Diameter Metal Random Packing Effective Cold And Heat Resistance

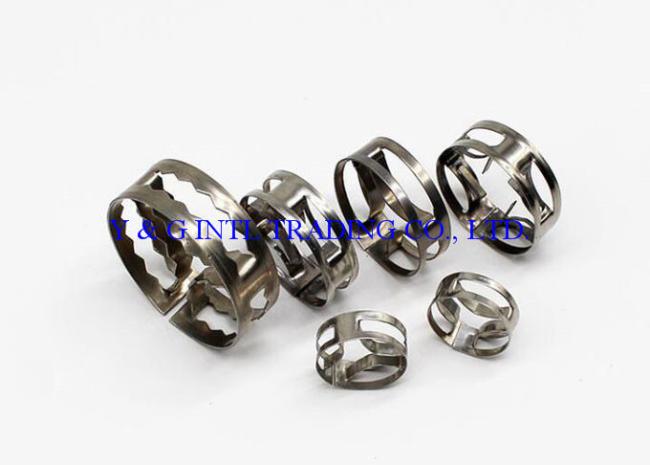

Normal Atmospheric Pressure Reduced Super Mini Rings Effective Cold And Heat Resistance
The height-to-diameter ratio of the Super Mini Rings without ladder central flanging is 0.2-0.4. The strength of the packing is improved by the inner arc ring which arrange orderly when randomly heaped. The Super Mini Rings are of reasonable great structure, low pressure drop, ameliorative processing capacity and excellent mass transfer performance.
Advantages of Super Mini Rings:
Large flux, low pressure drop, high mass transfer efficiency, large elasticity of operation, low pressure drop, great separating, effective cold and heat resistance, longer lifetime.
Specification of Super Mini Ring:
|
DIA (mm) |
D×H×T (mm) |
Surface Area (m2/m3) |
Void Rate (%) |
Number Per M3 |
Weight (Kg/M3) |
Dry packing factor (m-1) |
| 16 | 16×5.5×0.5 | 348 | 92.3 | 630000 | 604 | 312 |
| 25 | 25×9.0×0.5 | 228 | 93.6 | 160000 | 506 | 280 |
| 38 | 38×13×0.7 | 150 | 95 | 48000 | 390 | 175 |
| 50 | 50×17×0.8 | 120 | 96.5 | 21500 | 275 | 156 |
| 75 | 75×25×2.5 | 70 | 97.5 | 5800 | 264 | 90.2 |
Applications:
various separation, absorption and desorption equipment, normal atmospheric pressure reduced and vacuum distillation plant and desulfuration systems, ethyl benzene separation, and Iso-octane/toluene systems.
