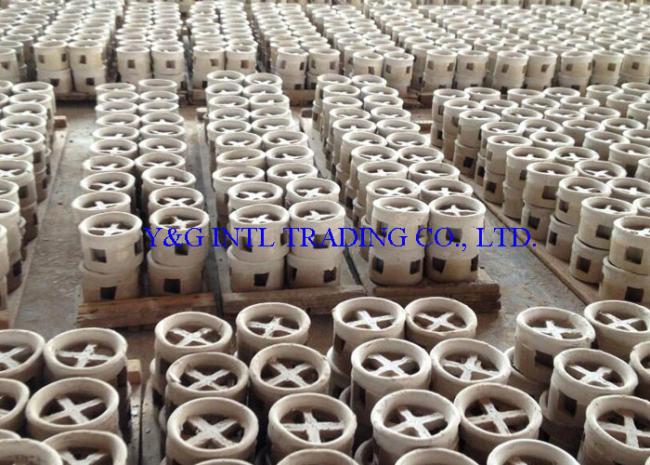

Ceramic Pall Ring Tower Packing Ceramic Random Packing In Adsorbing Columns
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
25-35days
Brand:
Y&G
Product Description
Ceramic pall ring tower packing in adsorbing columns
Supply Ability
Supply Ability:
10000 Cubic Meter/Cubic Meters per Year
Packaging & Delivery
Packaging Details
carton box,Jumbo bag,palletized + in plastic wrapped
Port :Shanghai&tianjin
Ceramic pall ring tower packing in adsorbing columns
| Model: | Ceramic Pall Ring | |||||
| Shape: | Ring | |||||
| Color: | Light Grey | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O | ||
| >70% | 17-23% | <1% | <1-2% | <2-4% | ||
| Technical data | ||||||
| Diameter (mm) | D*H*T(mm) | Surface area (m2/m3) |
Free volume (%) | Number per m3 | Bulk density (Kg/m3) | Dry Packing Factor (m-1) |
| 38 | 38*38*4 | 150 | 75 | 13400 | 570 | 356 |
| 50 | 50*50*5 | 120 | 78 | 6800 | 550 | 252 |
| 80 | 80*80*8 | 75 | 80 | 1950 | 520 | 146 |
| Physical properties | ||||||
| Index | Value | |||||
| Specific gravity(g/cm3) | 2.25-2.35 | |||||
| Water absorption (%) | <0.5 | |||||
| Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 | |||||
| Firing temperature(Degree C) | 1280-1320 | |||||
| Softening point( Degree C) | >1400 | |||||
| Density(kg/m3) | 2350 | |||||
| Typical Application | a) Have excellent acid resistance and heat resistance. b) It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid. c) Used in high or low temperature conditions. d) Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. |
|||||
| Package : | Jumbo bag; Carton box; Wooden Case | |||||
| Warranty: | a) By National Standard HG-T 4369-2012 | |||||
|
b) Offer lifetime consultation on problems occurred |
||||||
