Custom Plain Bearings Washer Cusn8 & Cusn6.5 Graphite Standard Size Cylindrical Flanged Sleeve Bushing
We specialize in manufacturing custom plain bearings washers made of Cusn8 and Cusn6.5 graphite materials. These washers come in a standard size and feature a cylindrical flanged sleeve bushing design, ensuring optimal performance and durability in various applications.
The Cusn8 and Cusn6.5 graphite materials possess excellent wear resistance and corrosion resistance, making them suitable for use in harsh environments. The cylindrical flanged sleeve bushing design provides excellent support and stability, ensuring smooth operation and reduced friction.
Our custom plain bearings washers are precision-made to meet your specific requirements and can be customized to fit different shaft diameters and housing bore sizes. Wh you need a single washer or a large batch, we can provide you with high-quality products and timely delivery.
If you have any questions or need more information about our custom plain bearings washers, please feel free to contact us. We are committed to providing you with the best products and services.
Plain bearings, flanged bearings and thrust washers
We can supply plain bearings in a wide variety of materials, sizes, tolerances and designs.
09g bronze graphite wrapped bushing bronze sleeve oilles self-lubrication bearing
bronze wrapped bearings cusn8 & cusn6.5p0.1 with graphite
standard size cylindrical flanged sleeve bushing 09g
Description
VSB-22 Bronze Wrapped Bearing with Graphite
(09G CYLINDRICAL BUSHES BRONZE FLANGE BUSHES Gleitlager standard size)
Bronze Warpped Bearings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
·Good performance in lubricated applications
·Good performance in greased applications
·Suitable for linear, oscillating and rotating movements
Vsb-22 09g Cylindrical Bushes Flange Bushes
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip
These are similar to the VSB-22 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
Strusture
The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.
Technical Date
|
Technical data |
|||
|
Maximum load |
Static load |
N/mm² |
120 |
|
Dynamic load |
N/mm² |
40 |
|
|
Operating temperature |
Minimal |
℃ |
-40 |
|
Max greased |
℃ |
150 |
|
|
|
Max oil lubricated |
℃ |
250 |
|
Grease/Oil lubricated |
Maximum sliding speed |
m/s |
2.5 |
|
Maximum PV factor |
N/mm²·m/s |
2.8 |
|
|
Coefficient of friction |
|
0.05-0.15 |
|
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
Typical Applications
These are similar to the CSB-090 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.

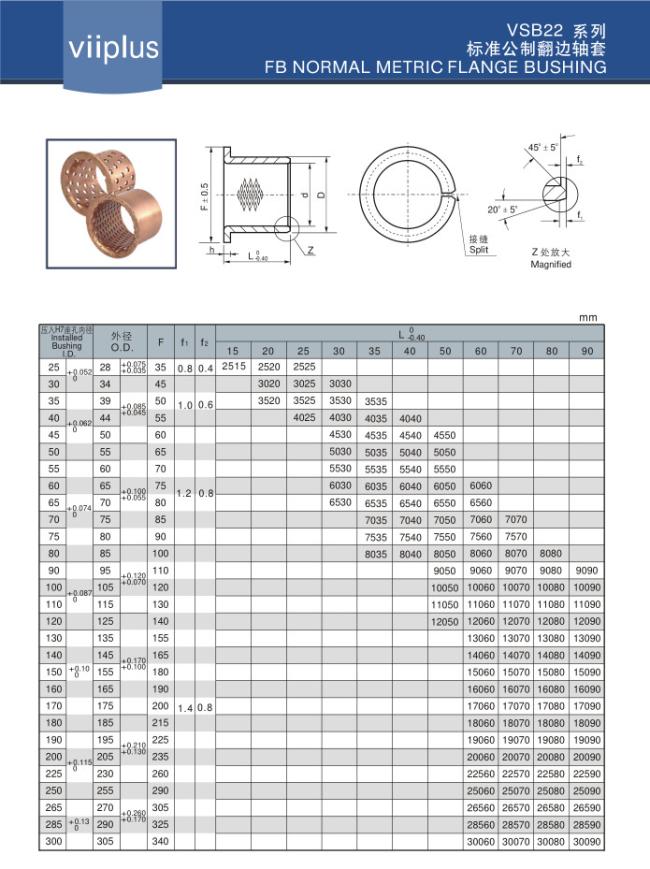

SIZE
