Veson offering the best quality pneumatic actuator operated damper that is useful in control of air flow in various industries and commercial places. The damper can be used in various cooling and heating applications. The damper can be used in various places like offices, hospitals and other big buildings as it helps in effective control. The offered damper is easy to install and operate. The Pneumatic actuator operated damper is easy to control and can be used in various items like air conditioners, heating systems, air handlers etc for making the cooling and heating both according to the need.

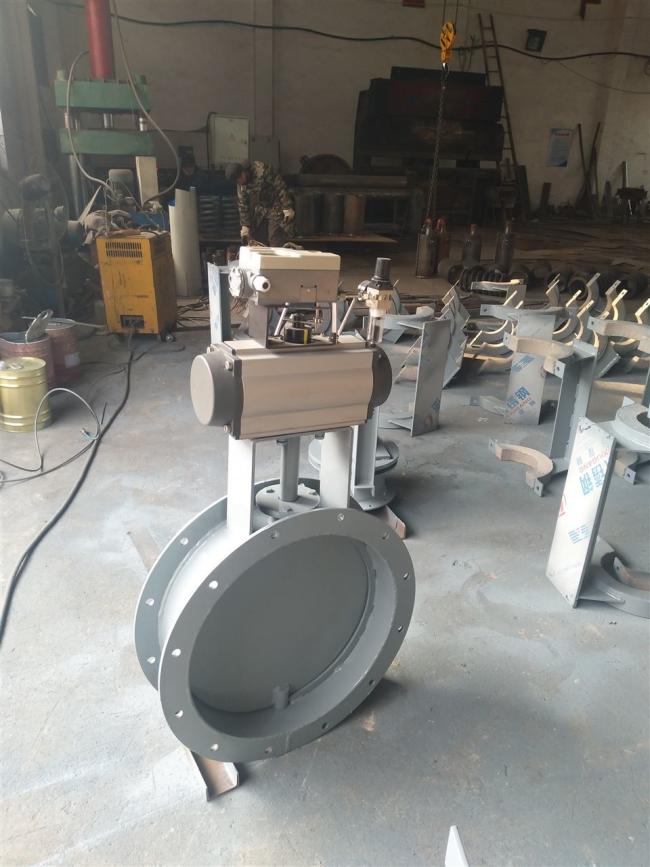

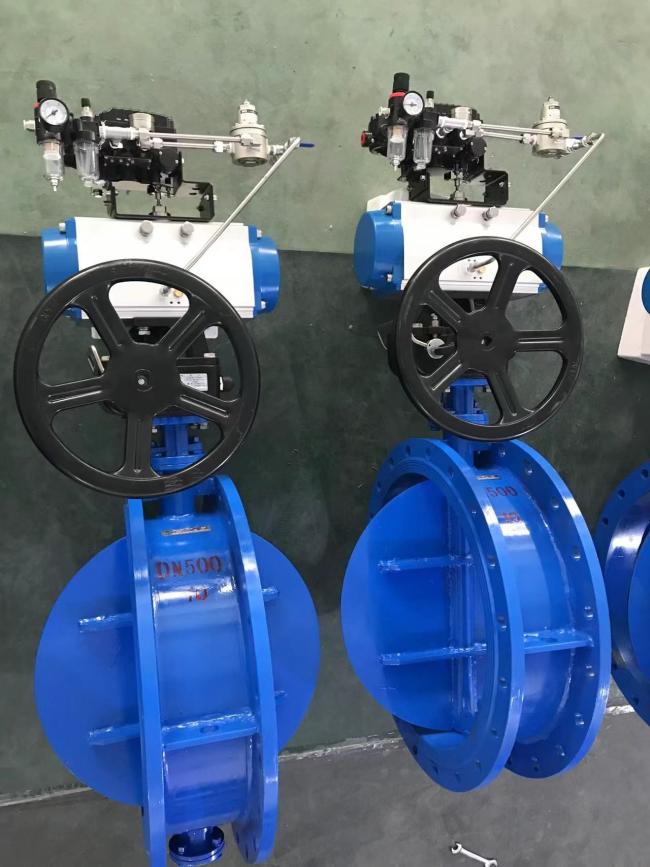

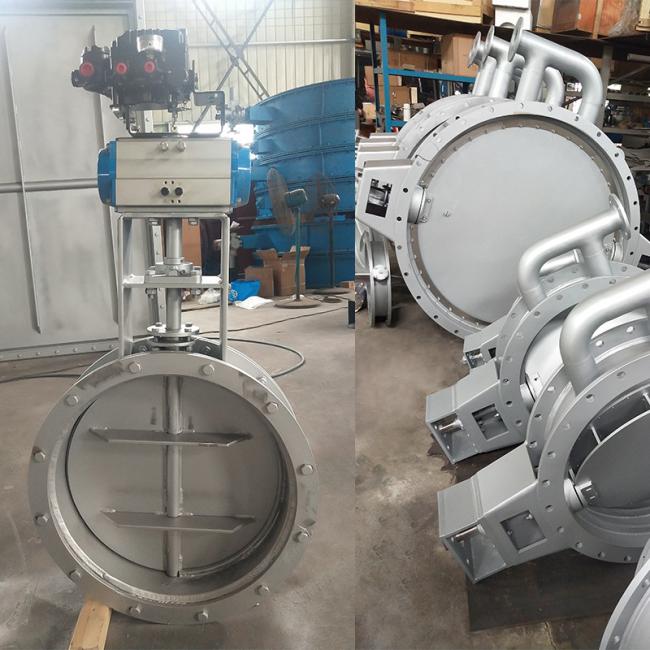

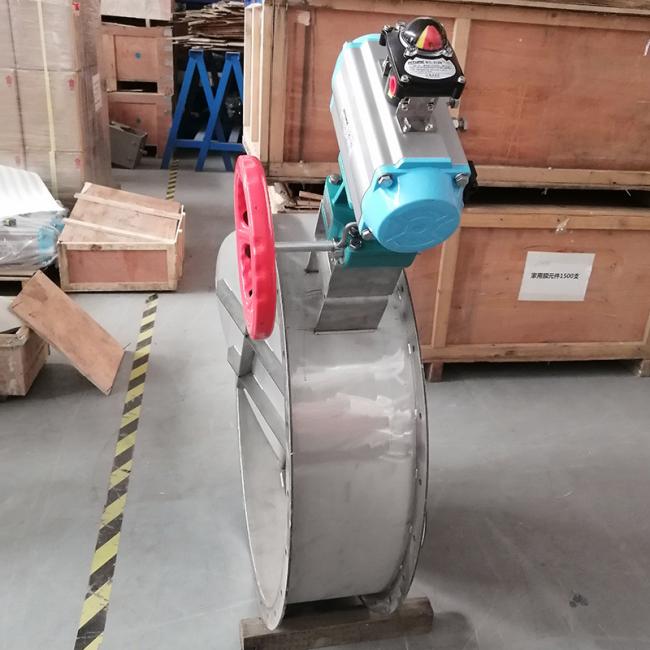

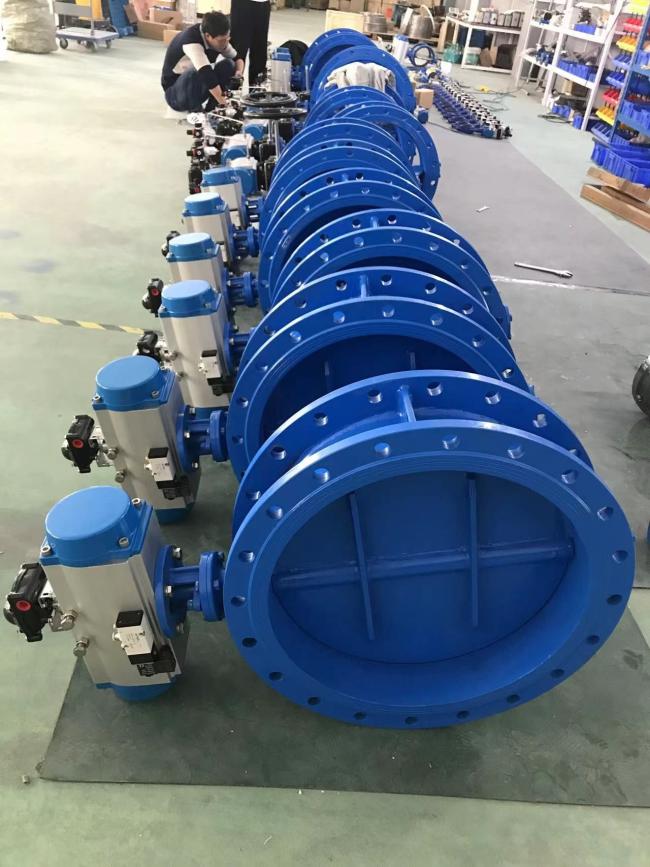

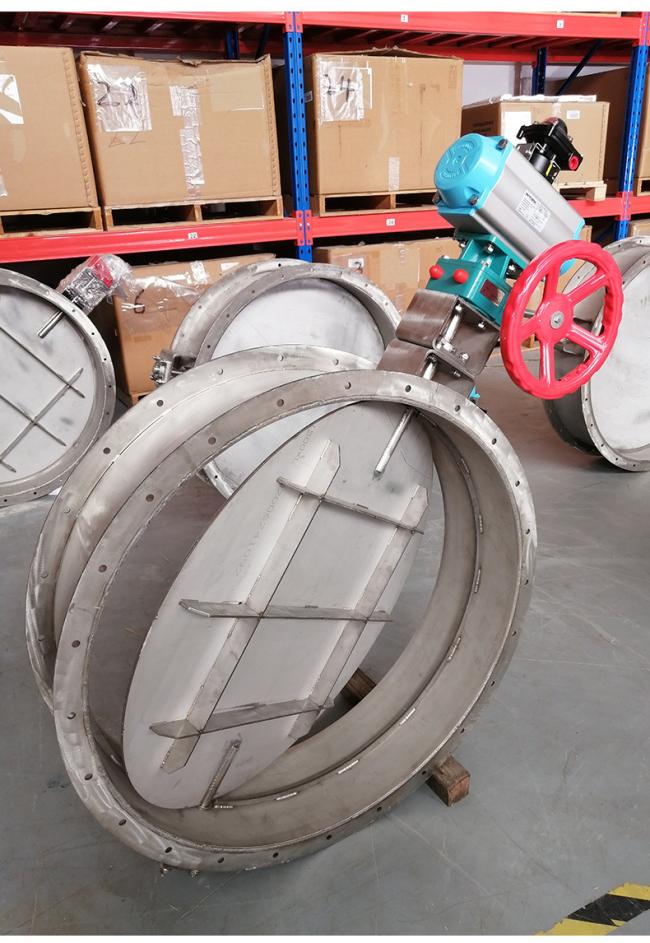

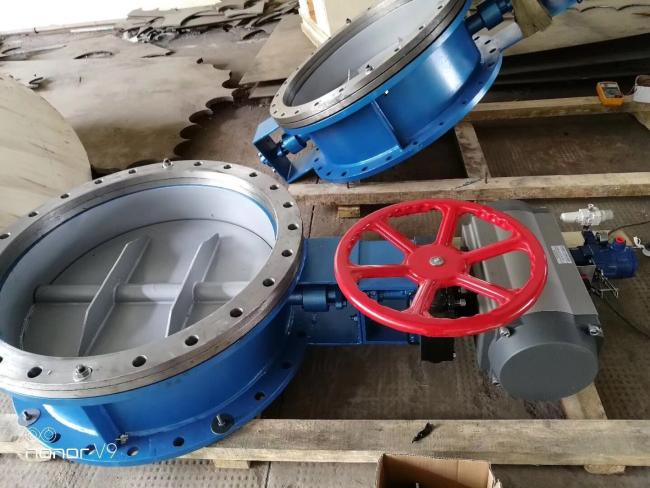

Pneumatic Ventilation Butterfly Valve Product Overview The pneumatic ventilation butterfly valve is a high-performance valve designed for industrial, metallurgical, and environmental protection applications. This valve utilizes the same material as the valve body to create a durable sealing ring and employs electric or pneumatic transmission mechanisms. The operating temperature range of the valve is contingent upon the valve body material, with a nominal pressure of ≤0.6MPa. It is ideally suited for ventilation and medium flow adjustment in various pipeline systems.
Key Features of Pneumatic Ventilation Butterfly Valve:

1. Innovative and rational design, featuring a unique structure, lightweight construction, and rapid opening and closing capabilities.
2. Low operating torque, ensuring ease of operation, labor-saving, and agility.
3. Utilizes appropriate materials to accommodate low, medium, and high medium temperatures, as well as corrosive media.

Pneumatic Ventilation Butterfly Valve Actuator: The valve is equipped with a new series AT type pneumatic actuator, available in double-acting and single-acting (spring return) configurations, utilizing gear transmission for safe and reliable operation. Larger diameter valves employ a series AW type pneumatic actuator with fork transmission, boasting a reasonable structure, substantial output torque, and both double-acting and single-acting options.

1. Gear-type dual piston design delivers significant output torque in a compact form factor.
2. The cylinder is crafted from aluminum, resulting in a lightweight and visually appealing construction.
3. Manual operating mechanisms can be installed at the top and bottom for flexibility.
4. Rack-type connections allow for adjustments to the opening angle and rated flow.
5. The actuator can be fitted with electrical signal feedback indication and various accessories to facilitate automated operation.
6. Compliance with IS05211 standard connection ensures ease of product installation and replacement.
7. Adjustable screws on both ends provide a ±4° adjustable range at 0° and 90° for the standard product, ensuring synchronization accuracy with the valve.

Pneumatic Ventilation Butterfly Valve Specifications: Nominal Diameter, DN (mm): 50～2000




　　Materials of main parts of pneumatic ventilation butterfly valve
