6189-0130 Sumitomo Automotive Connectors 3 Way For Headlight Leveling Device
6189-0130 3 Way Sumitomo HW Sealed Connector for Head Light Leveling Device
Description
3 Way Sumitomo HW Sealed Connector for Head Light Leveling Device
1 Row , 3 way
It is used for Head Light Leveling Device
Height : 21.4mm
Width : 28.1 mm
Length : 27.8mm
Configuration : 1 Housing connector +3 Terminals +3 Seals
Mating part : 6181-0071
Temperature Range: -40°C to 125°C
The connectors have a maximum current capacity of 15 Amps
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
6189-0130 3 Way Sumitomo HW Sealed Connector for Head Light Leveling Device |
| P/N | 6189-0130 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-55℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

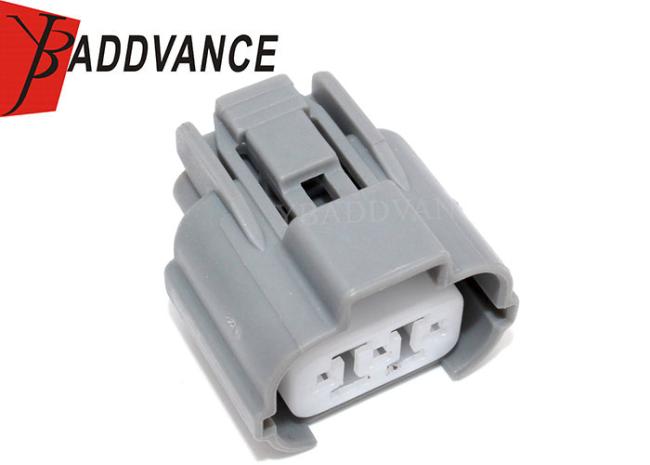

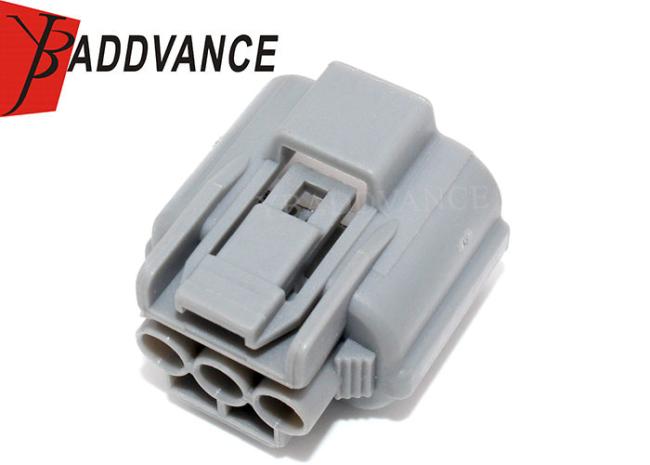

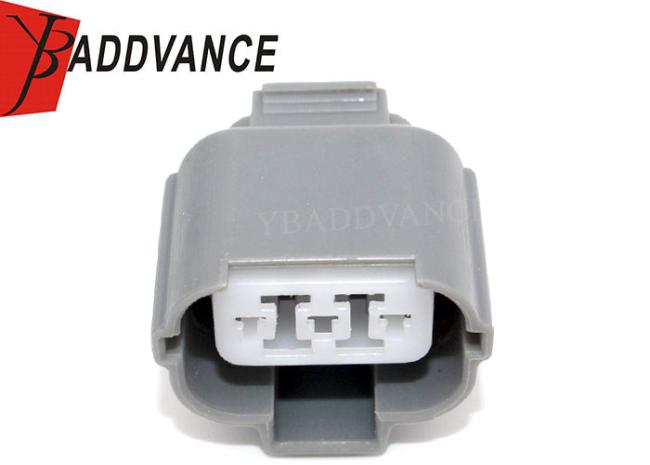

Product Picture Details
