MT 090 Series Sealed Speed Sensor Connector 6187-3231 For Automoive Motorcycles
6180-3241 3 Way Female Sumitomo MT Series Waterproof Connector
Description
3 Way Female Sumitomo MT Series Waterproof Connector
Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)
Height : 17.8 mm
Length : 36 mm
Width : 17.8mm
Mating parts: 6180-3241
It comes with Terminals and seals
Waterproof Connector Housing with Inner Seal, and Wire Seals
This white triangular sealed motorcycle wiring connector used on speed and gear sensors on motorcycle wiring looms. it allso used on other vehicle wiring.
Specification
|
Item name |
6187-3231 3 Pole MT 090 2.3mm Series Sealed Speed Gear Sensor Connector |
| P/N | 6187-3231 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

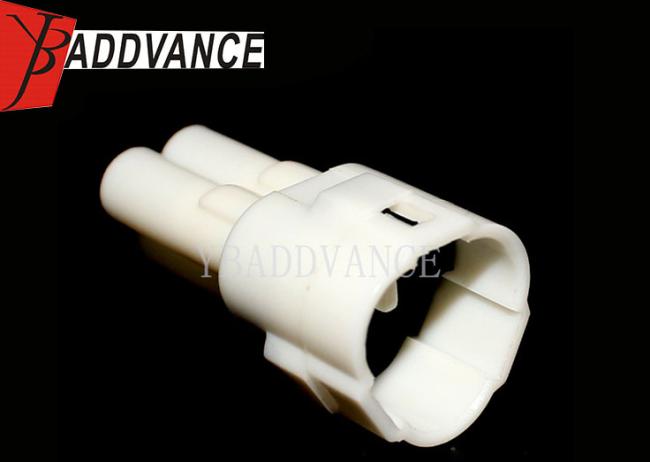

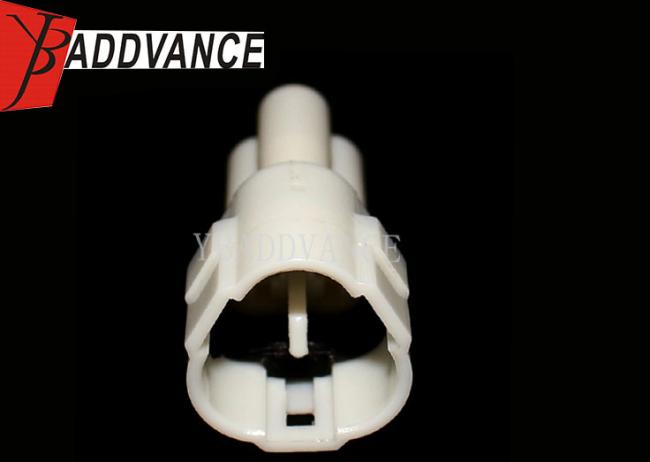

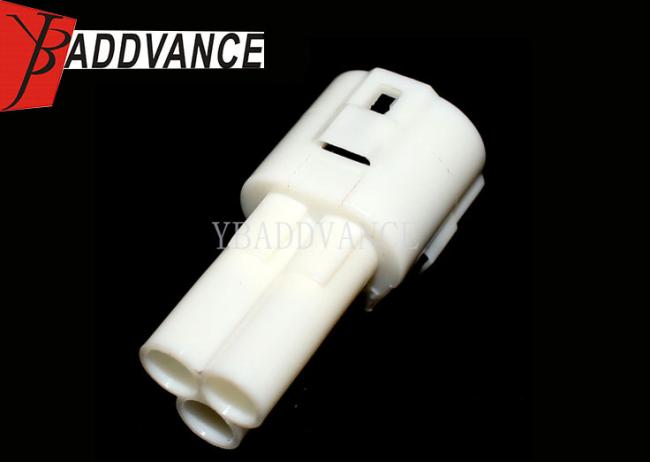

Product Picture Details
