6 Position Female Sumitomo Mt Connector 6180-6771 With ISO9001 Approval
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6180-6771 6 Position Female Sumitomo MT Sealed Series Connector
Description
6 Position Female Sumitomo MT Sealed Series Connector
Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)
Height : 18 mm
Length : 23 mm
Width : 22.2 mm
Mating parts: 6187-6561
Series: MT Sealed Series
Application :
S uzuki ignition switch on GSXR 05-13' (switch side, gray)
Dealer mode connector on many Suzuki motorcycles (white)
Specification
|
Item name |
6180-6771 6 Position Female Sumitomo MT Sealed Series Connector |
| P/N | 6180-6771 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 6 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

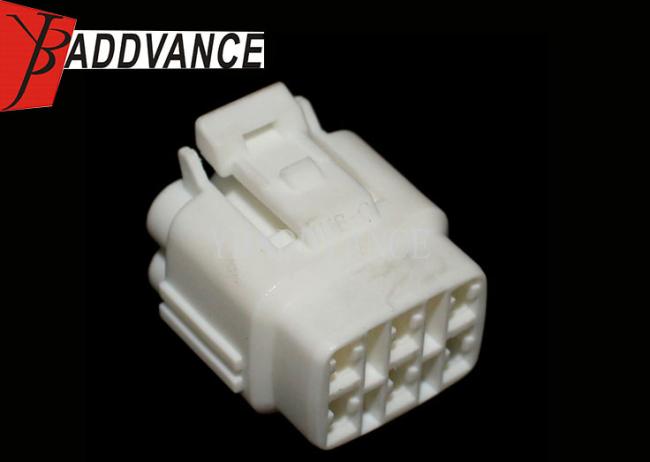

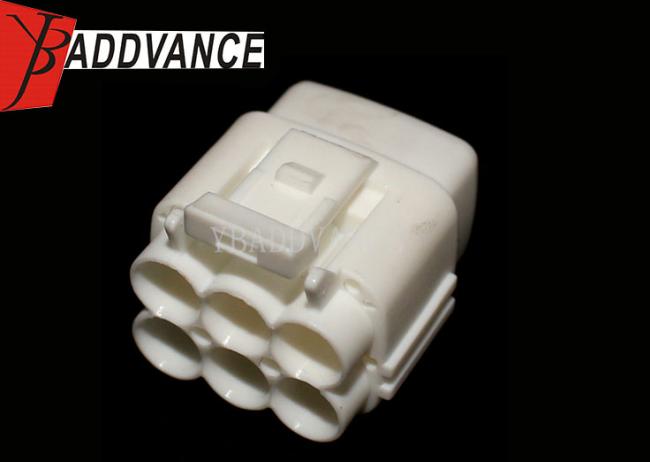

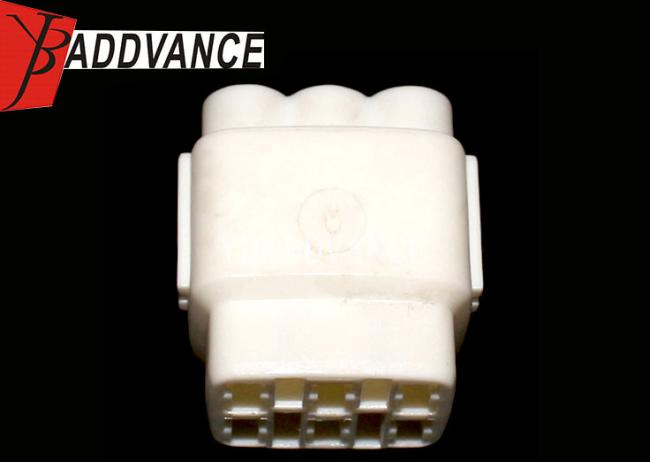

Product Picture Details
