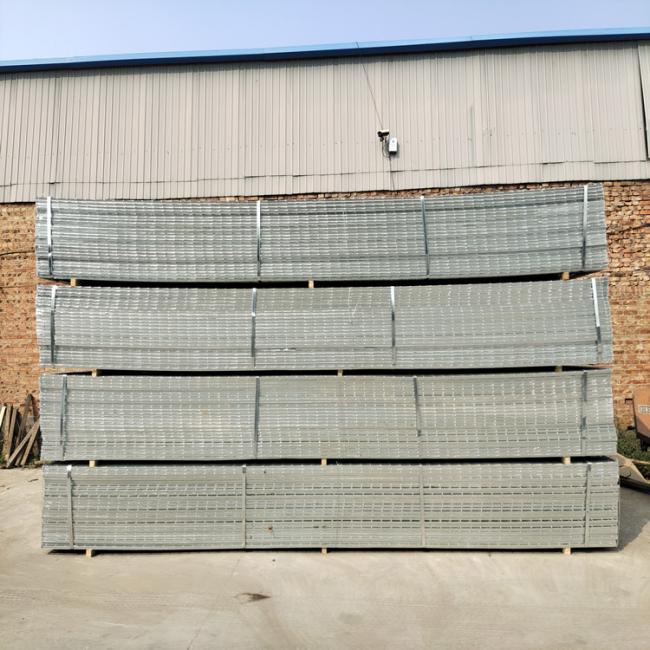

Toothed Serrated Bar Grating Hot Dip Galvanizing For Equipment Platform Step
Toothed hot dip galvanizing equipment platform step steel grating
Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.
1. Description
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
1.Material :Low carbon steel, stainless steel, aluminum alloy
2.Shape and specification
3.Types of Steel Grating: Plain/smooth type, I type ,Serrated/teeth type.
4.Cross bars shape: square bars, twisted square bars,round bars
Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc
Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc
Bearing Bar Pitch: 30mm, 40mm, 50mm, etc
Cross Bar Diameter: 5mm, 6mm, 8mm, etc.
Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc
| No. | Item | Description |
| 1 | Bearing bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Cross bar | 5*5,6*6,8*8mm(twisted bar or round bar) |
| 4 | Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 5 | Material Grade |
ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400, Mild steel & Low carbon steel,etc. |
| 6 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 7 | Flat bar type | Plain,Serrated(tooth-like),I bar (I section) |
| 8 | Standard |
China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88), UK:BS4592-1987,Australia:AS1657-1985, Germany:DIN24537-1-2006, Japan:JJS. |
Our services
With advanced technology, production lines equipped with imported machines, as well as experienced workers, we supply the products with high quality.
Our slogan is "the products speak". In spite of different size and different value of the order, we will make our biggest efforts to offer best service and perfect products to every customer. Save both cost and time for customers.
2. how can we guarantee quality?
A.Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
A.Mesh; Steel Grating; Filtration Equipment; Fence Netting
4. why should you buy from us not from other suppliers?
A.1. We are a professional manufacturer
3. We provide one-stop service to assist you to develop together with us
