45mm Drain Cover Structure Heavy Duty Steel Grating Platform Board
Heavy Duty Steel Grating Grill Grates Used As Drain Cover Steel Structure Platform Board
Describe:
Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
Table shows:
|
Product name |
Steel grating |
|
Material |
Mild steel (Carbon steel) stainless steel 304, SS316 |
|
Material standard |
USA:ASTM A36 UK:BS4360 Australia:AS3679 China:Q235 |
|
Bearing bar type |
Smooth/flat bar serrated/toothed bar Smooth I bar Serrated I bar |
|
Bearing bar thickness |
2mm to 10mm, 3mm and 5mm recommended |
|
Bearing bar pitch |
12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
|
Bearing bar specification |
flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
|
Cross bar |
5*5mm,6*6mm,8*8mm |
|
Cross bar pitch |
30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
|
Surface treatment |
Hot dipped galvanized Untreated(self-color) Painted |
|
HDG standard |
ASTM A123 BS729 AS1650 |
|
Grating Standard |
AS1657-2013 BS4592-2006 ANSI/NAAMM(MBG531-88) |
|
Product name |
Steel grating |
|
Material |
Mild steel (Carbon steel) stainless steel 304, SS316 |
|
Material standard |
USA:ASTM A36 UK:BS4360 Australia:AS3679 China:Q235 |
We promise : cost price for the first cooperation
Our advantages:
1. We are local manufactory---price are much competitive.
2. We have done international business for more than 20years-- high reputation in worldwide.
3. We adhere to the operational theme of “We only produce products to you praise".

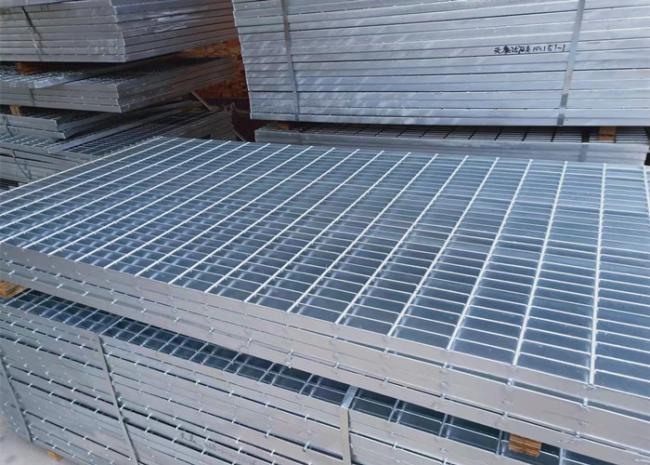

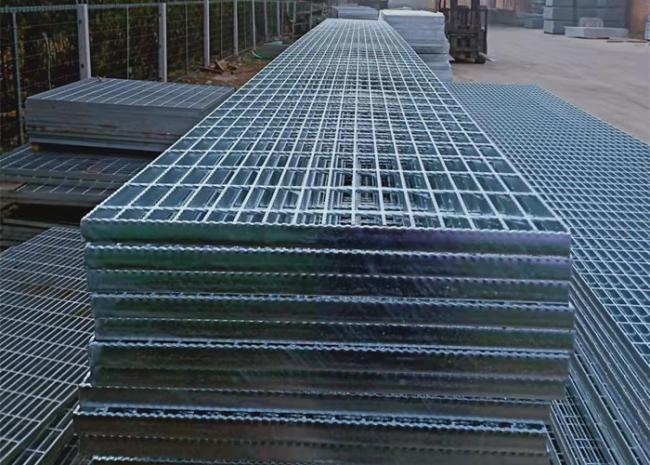

Heavy Duty Steel Grating pictures:
Why Are We The Best?
1. Strictly follow quality standards and manufacture metal products according to international standards.
2. Over 10 years of development, we have a mature production line, experienced workers and a technical team that is good at solving various problems of customers.
3. Focus on details, from communication, customization, production, packaging, and transportation to after-sales, every link is handled carefully.
4. Rich export experience: our products have been exported to more than 50 countries and regions in the world. 5. Passed ISO 9001: 2015 quality management system certification.
What Benefits Can You Get?
1. Get a reliable and trustworthy Chinese supplier.
2. Provide you with the most competitive factory prices to ensure your interests.
3. You will get a free guide and recommend to you the most suitable product or specifications for your project based on our experience.
4. Almost any industrial metal and wire mesh product needs can be met you.
5. You can get free samples for most of our products
6. You can also distribute any of our products, we will fully support to help you develop the local market.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
