LCD Display Weighing Indicator for Platform Scales,Plastic Weight Indicator for Weighing Scale

LCD Display ABS Housing Weighing Indicator

Quick Details:

EWA Series adopts the high precision analog-digital conversion technology and Special software anti-vibration technology with AC/DC power supply. This series is suitable for electronic scales as well as platform scales,which can support 1~4 sensor static weighing system.

Features:

* Function keys: Off,Unit,MR/MC,M+/Print,Tare,On/Zero

* Weighing,simple counting

* Power on zero-tracking,auto-calibration,auto-power off mode,full tare,accumulation memory,programmable capacity and division,low battery indicator and charging status indicator

* Optional RS232 output

Standard Functions:

* High precision A/D conversion
* With exact counting functions;
* Can realize manual cumulative function;
* Power-off protection function in weight with timing shutdown function.
* Alternative and various backlight models;
* Manual revision G value function all over the world;
* With multiple peaks, maintain stable value function;
* With external calibration convenient functions;
* Achieve six sections of nonlinear correction.

Specifications:

* Accuracy: III

* Display: 30mm high,6 digits LCD(seven segments) with LED backlit

* Rechargeable battery 6V4Ah(lead acid) or Input AC 110/220V(+/-10%) 50/60Hz

* Power supply: Input AC 100V~240V, Output 9V/500mA

* Load cell: up to 4*350 ohm minimun resistance

* Display/Internal resolution: 15,000/200,000

* Product size: 225mmx80mmx180mm

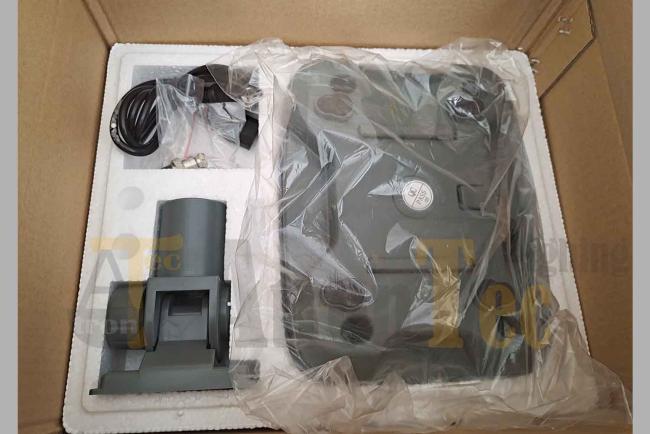

Weight Indicator Picture:
