AISG-F-SMH200-5P-Cable Assembilies 210mm Industrial Camera Sensor Trigger Connector
AISG-F-SMH200-5P-Cable Assembilies 210mm Industrial Camera Sensor Trigger Connector
Product Description

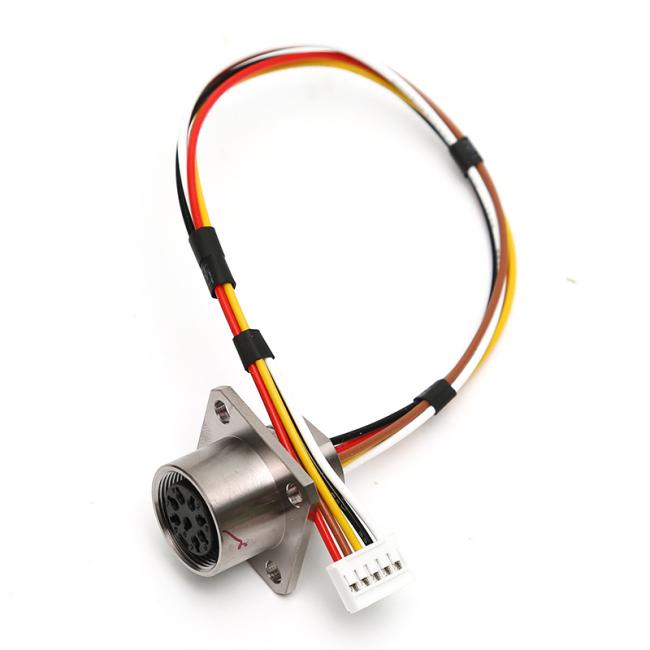

This is a specialized signal cable assembly designed for industrial machine vision systems. It features an AISG-F (female) connector on one end and a SMH200 series 5-pin (5P) wire-to-board connector on the other. It serves primarily as a trigger, power, or I/O signal cable for connecting industrial cameras (such as Basler, AVT, Sony CCD, or GigE cameras) to sensors, controllers, or PLCs for precise image capture triggering and data transmission in automated inspection, robotics, and manufacturing lines.
High-lighting Benefits
- Precise Triggering: Enables accurate sensor-triggered image capture for high-speed machine vision applications.
- Reliable Connectivity: Robust AISG locking connector ensures secure connection in vibrating industrial environments; SMH200 provides compact, reliable board-level connection.
- High Compatibility: Works with major industrial camera brands for power, trigger, and I/O signals.
- Customizable & Durable: Flexible cable lengths, good shielding against EMI, and industrial-grade materials for long-term reliability.
- Cost-Effective: Direct from Chinese manufacturer (Dongguan area suppliers), suitable for OEM/volume production.
Technical Parameters
| Parameter | Details |

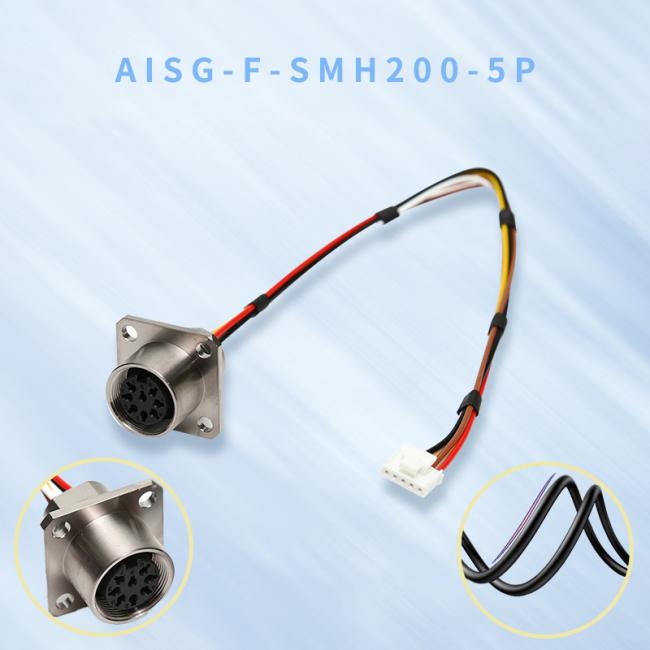

| Product Model | AISG-F-SMH200-5P-Cable |

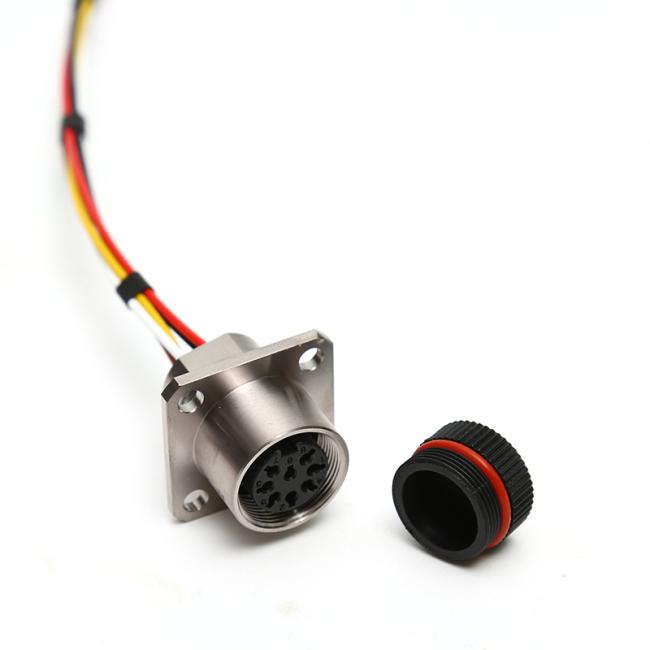

| Connector A | AISG Female (locking type) |
| Connector B | SMH200 5P (2.0mm pitch, YEONHO compatible) |
| Pin Configuration | 5 pins (power, trigger, IO signals) |
| Cable Type | Multi-core signal cable |
| Current Rating | Approx. 3A per pin (depending on wire) |
| Voltage Rating | Low voltage (typically 5V-24V DC for signals) |
| Pitch (SMH200) | 2.0mm |
| Operating Temperature | -40°C to +85°C (typical industrial) |
| Applications | Industrial cameras, sensors, automation |
| MOQ / Customization | Contact us for bulk/custom lengths |
Application Scenarios
- Machine vision inspection systems on production lines (e.g., defect detection, measurement).
- Robotics and automation for part picking, alignment, or quality control.
- Industrial cameras in factory automation, semiconductor, automotive, or pharmaceutical manufacturing.
- Triggering external sensors (photoelectric, proximity) to synchronize camera captures.
- Integration with PLCs, GigE Vision, or Camera Link setups.
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
