2TPH Pharmaceutical Loop Distribution System EDI RO Ultrapure Purified Water System
2TPH Pharmaceutical Loop Distribution System EDI RO Ultrapure Purified Water System
------Description
Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.
High-quality.Anti-corrosion equipment, long service life.Steady flow.
Simple operation, Easy to learn and install,small in size.
After-service.One year warranty, whole life service.

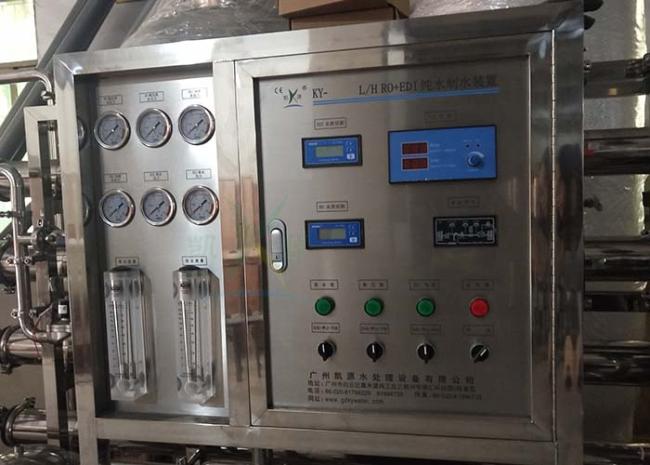

| Equipment control system |
| There are two modes of operation in the whole system: manual and automatic mode |
| When the original water tank is short of water, the whole system can not work |
| When the pure water tank is full of water, the whole system stops working |
| Automatic flushing can be set up for reverse osmosis |
| Tap water can automatically recharge water |
| Equipment characteristics |
| Two regeneration |
|
no hazardous waste discharge, beneficial to environmental protection
|
| continuous operation, simple operation |
| easy to install, maintain |
| Equipment application field |
| Mineral water, liquor brewing water, drinking pure water |
| Hotels, buildings, residential , airports, factories drinking water |
| Producing drinking water by sea water and bitter salt water |
| Ultra pure water used in circuit, electronics, optics, chemical industry, petroleum, surface treatment and other industries |
------Process

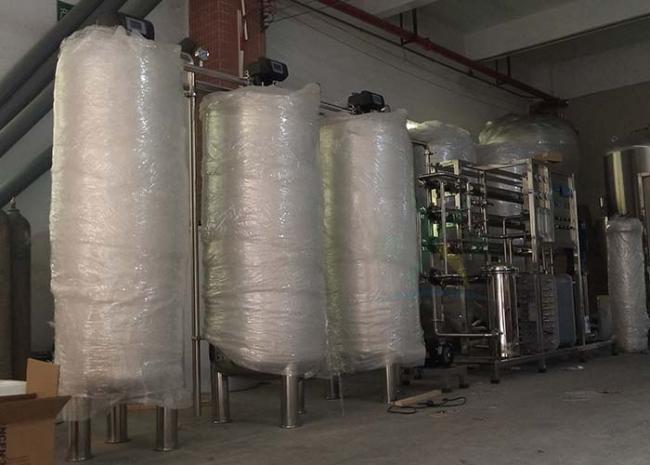

Raw water tank + raw water pump + quartz sand filter + activated carbon filter + mineralized ball filter + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + water supply point
| 1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate |
| 2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration |
| 3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water |
| 4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water |
| 5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water |
| 6. Security filter: further filtration, protection of reverse osmosis membrane |
| 7. High pressure pump: provide enough pressure for reverse osmosis system |
| 8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water. |
| 9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application. |
Kaiyuan do our best to meet your water demand solution!!. ^^
