Industrial Water Softener System Remove Hardness With PLC Touch Screen Control
Industrial Water Filter Softener System Remove Hardness With PLC touch screen For Drinking
The hardness of the output water test by the "chrome black T reagent" showed blue is qualified (<0.03mmoL/L).
First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Exchange process as follow:
|
2RNa + Ca2+ = R2Ca + 2Na+ |
|
2RNa + Mg2+ = R2Mg + 2Na+ |
|
R2Ca + 2NaCl = 2RNa + CaCl2 |
|
R2Mg + 2NaCl = 2RNa + MgCl2 |
Technical index and working
|
1.Water pressure:0.18-0.6Mpa |
|
2.Working temperature:1°c-55°c |
|
3.Hardness of raw water: <8mmol/L |
|
4.Operation method:manual/automatic |
|
5.Hardness of effluent water: ≤0.03mmol/L |
|
6.water flow: 0.3-20 t/h |
|
7.Rebirth method:resin |
|
8.Control method: time or flow |
|
9.Working electric: 100-220V,60/50Hz |
Application
Feed water(source water / raw water):
City water, river water, lake water, underground water(borehole water , well water), brackish water, sea water atc...
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

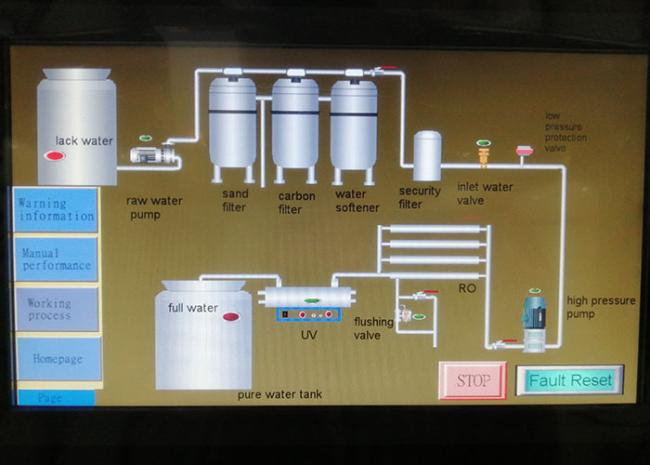

1.Press Working process you will see picture as bellow:
This one show whole system running and water level in raw water tank and pure water tank. When it is working, light will be blinking.
2.Press manual operation
You can press start or stop to control pumps and valves manual. After manual operate, pls change to auto mode. When it is blinking means part is working, if you need to stop it, just press stop or off button.
Notice: when you start manual operation, all protection function will be useless.

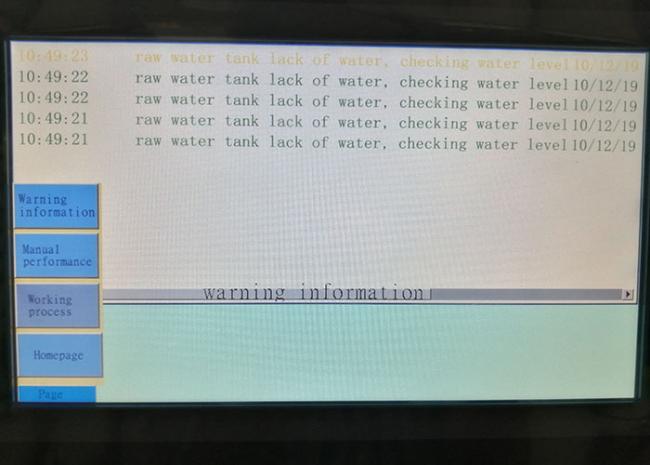

3.Press waring information to this page
This page will write all problems of machine including raw water tank lack of water, low pressure alarming....
Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc...into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc...
For more details, please do not hesitate to contact us.
