Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter Machine 4000LPH With Dosing System​

Deal with raw water TDS range 2000 - 5000 ppm.

RO Systems are our hot products. The capacity ranges from 250LPH to 500TPH.

Brackish water, according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pretreatment system , here also include the specific inlet conditon of RO system for reference.

Brackish Water Treatment Plant Component

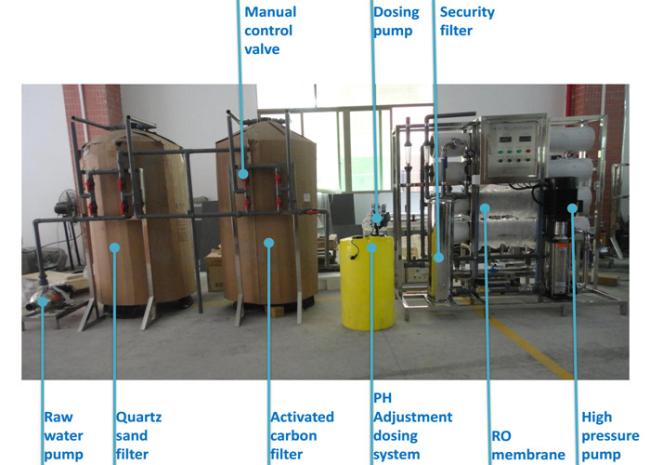

Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + Alkaline Filter + Coconut shell carbon filter

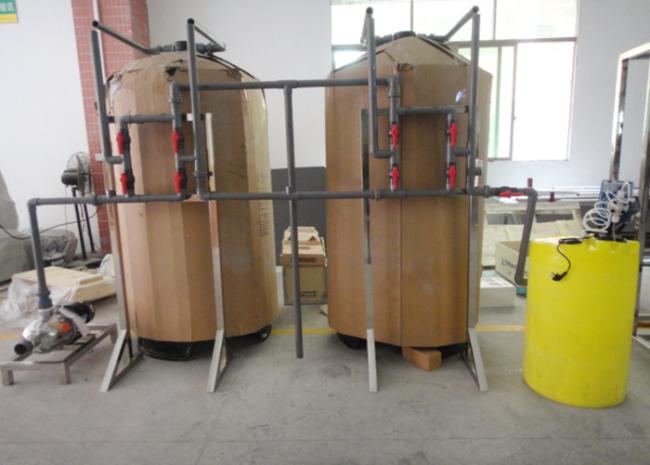

1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

5. Alkaline Filter: use stainless steel as housing, fill alkaline ball inside, can be done for PH 7-10 alkaline drinking water.

6. Coconut shell carbon filter: use stainless steel as housing, fill coconut shell carbon inside, remove color, odor, residual chlorine and organics substances;

7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)

8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month

Application:

1. Cosmetic industry, removal of the ions in the water, organic creature.
2. Food and beverage industrial water, drinking pure water, soft drink, beer, liquor, health care products, such as water purification and preparation of water
3. Textile, chemical industry process water/chemical preparation water circulating water, chemical products, such as purification and manufacturing
4. Can be used for bottled water, mineral water, etc filling water of making work
5. Electronic, biological and medical engineering( medical pure water).

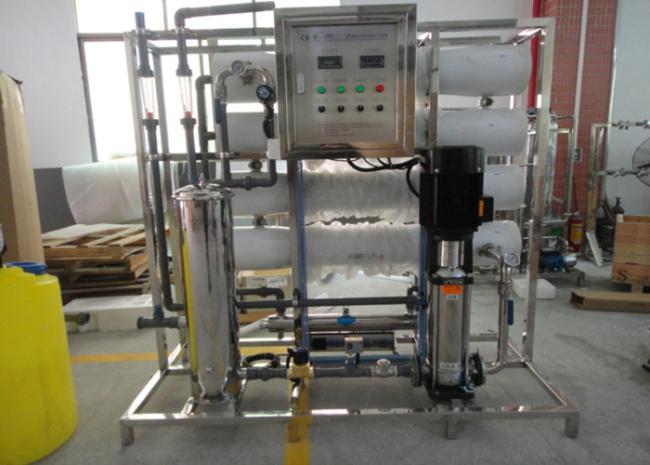

Brackish Water Treatment Plant Details
