Reverse Osmosis Brackish Water System For Electronics Industry 12TPH
Reverse Osmosis Brackish Water System For Electronics Industry 12TPH
Brackish Water System Application
- Drinking water
- Food & Beverage
- Electroplating
- Power plant
- Preparation of medicine
- Petrochemical industry
- Eyeglass
- Waste water reuse
- Metallurgy
- Pretreatment of EDI or Mixed Bed
Brackish Water System Details
| 1. Capacity: customized |
| 2. Rated power: check with the configuration list |
| 3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country |
| 4. Desalting rate:97-99% |
| 5. Water recovery rate: 50-75% |
| 6. Conductivity of raw water: ≤400μs or custom designed |
| 7. Conductivity of pure water: ≤10μs or custom designed |
Brackish Water System Function
| 1. Manually and automatically wash RO membrane, CIP system |
| 2. Manually wash RO membrane with chemicals on machine, |
| 3. Automatic shut-down at tank full, |
| 4 .SS high pressure components, SS pump to avoid the leakage. |
| 5. Multi-stage pumps protect the machine when lack of water, |
|
6. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc. |
Wroking Process
Water source ----pressure pump----quartz sand filter-----active carbon filter ----security filter ---- high pressure pump ----anti-penetration film element(RO membrane) ----stage I RO water tank-----stage two high pressure pump----stage two RO unit---pure water

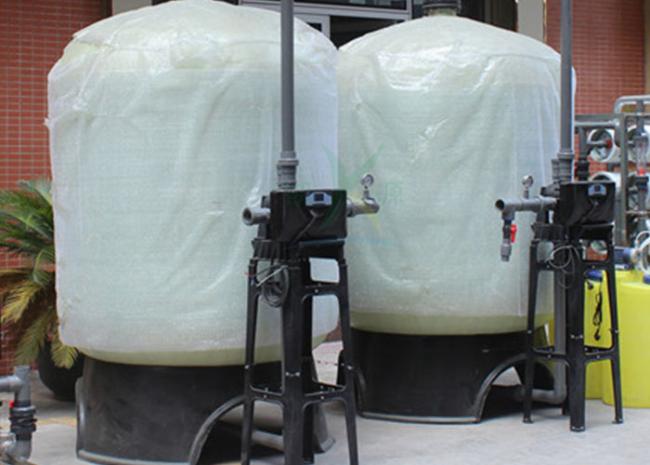

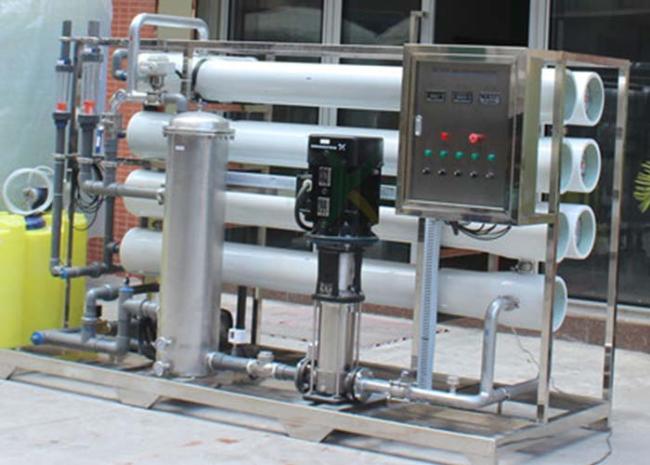

Brackish Water System Pictures show:
Our main products include: RO system, RO plant, UF system, EDI system, water softener, water filters, FRP tanks, membranes, membrane housings, etc. Besides standard products, we can also do customized products.
Please just tell me your needs and we will do the rest for you.^^
