Intelligent Remote Control 0.5 Ton RO Water Treatment System
Intelligent Remote Control 0.5 Ton RO Water Treatment System
RO Water Treatment System Introduction
The principle of RO water treatment system is that raw water passes through reverse osmosis membrane under high pressure, and the solvent in water diffuses from low concentration to high concentration to achieve the purpose of separation, purification and concentration. Reverse osmosis water treatment system can remove bacteria, viruses, colloid, organic matter and more than 99% soluble salts in water. The equipment has the characteristics of low operation cost, simple operation, high automation degree and stable effluent quality. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in water treatment related industries.
| 1---Quartz sand filter |
|
Function:Mainly remove the mud, suspended solids and large particles in the tap water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Filter material: Fine quartz sand Filter material Size: 1-2.5mm and 2.5-4.5mm |
| 2---Active carbon filter |
|
Function:mainly remove organic substances, residual chlorine and odor in tap water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Material: FRP Filter material: Fine active carbon Filter material Size: 20-40mesh |
| 3---Resin softening |
|
Function:mainly remove the calcium and magnesium in tap water, reduce the hardness of water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Material: FRP Filter material: Resin 0.315-1.25mm |
| 4--Security filter: |
|
Function: Further filtration, to avoid quartz entry into RO to break the membrane Shell Material: SUS304 Cartridge material: Spray-fusing polypropylene 5um 20’ Cartridge Qty: 5pcs |
| 5---RO membrane: |
|
Function: the core part of pure water equipment, the production of high-purity water. Parameters: Model: ULP31-4040 Flow rate: ≥7.2m3/h(25°C) Desalination rate %:99.4% Max Inlet Water Temperature: 45 °C Max Working Pressure:600pai(4.14Mpa) Effective membrane area ft2(m2) :85(7.9) Operation: automatic control, automatic flush Membrane material: aromatic polyamide composite membrane Membrane housing material: SUS 304 |
| 6--- High-pressure pump: |
|
Function: provide enough pressure for reverse osmosis system Model:CVF2-13T 1.5kw Material: SUS304 Flow: 3.2m3/h Lift: 60m |
| 7---Anti-sludging agent dosing device |
| Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide |

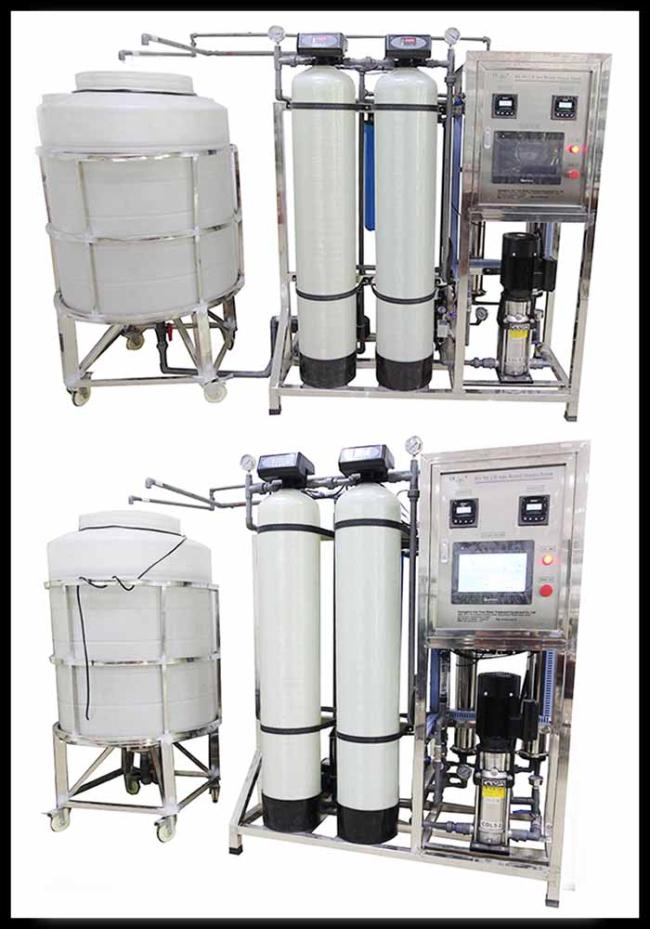

RO Water Treatment System Pictures
