China 5000LPH Ultrafiltration Membrane System Water Treatment Plant for sale

5000LPH Ultrafiltration Membrane System Water Treatment Plant

Price Negotiable

Price: negotiation

MOQ: >= 1sets

Delivery Time: 1-7working days(depand on raw materials stocking)

Brand: Kaiyuan

Product Description

5000LPH Ultra Filter Water Treatment System /Membrane Filtration System / Ultrafiltration Water Treatment Plant

1. Product Description

Ultrafiltration (UF) is the most widely used membrane separation technology. It is mainly used for the separation of macromolecular substances in solution. It has excellent effects on turbidity reduction, sterilization and separation, concentration and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organics in the water to purify the water. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane.

2. Product Details

1. Capacity: 5000L/H

2. Total power: 1.5KW/H

3. Voltage: 220V/ 380V, 50Hz/ 60Hz, 1ph /3ph

4. Packing: plywood case 2440*620*1850mm *2

5. Feed/backwash pump: CHL4-40

6. Backwash tank: PE-300

7. UF membrane: UFc90AL x 10pcs

8. Pretreatment: a. Quartz sand filter/ b. Activated carbon filter/ c. Security pp filter

S/N	Commodity name	Description/Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump	Provide needed pressure for every pretreatment filter	We can provide CNP pumps or pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into UF membrane, accuracy is 5µm	Stainless steel housing or PVC housing
7	UF(ultrafiltration) system	It is mainly used for separation of substances at high molecular level. It has a very good effect on deeply lowering turbidity, clarification, sterilization and separation, concentration, classification and purification of macromolecular substances. In the field of water treatment, it can be used to remove colloids, particles, bacteria, viruses, heat sources and macromolecular organic substances in water and make water purified.

3.Product Processing

Raw water→ Raw water tanks(provided by buyer) →Raw water pumps →Quartz sand filter→Softener(optional)→ Activated carbon filter →5μm security filter→Ultrafiltration device→UV sterilizer(ozone generator)→Pure water tank(provided by buyer) →Water supply point

Replacement time of consumable partsThere are several kinds of consumables you need to replace regularly. (5000LPH)

a. Quartz sand: replaced about every 15 months. 400kg/bag

b. Activated carbon: replaced about every 15 months. 125kg/bag
c. Resin: replaced about every 15 months. 100L/bag

d. PP Filter cartridge: replaced about every 1 month , 20" x 5um

e. UF membrane: replaced about every 1year
We suggest you buy 1- 2 years consumption of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month to avoid bacterial breeding on its surface.

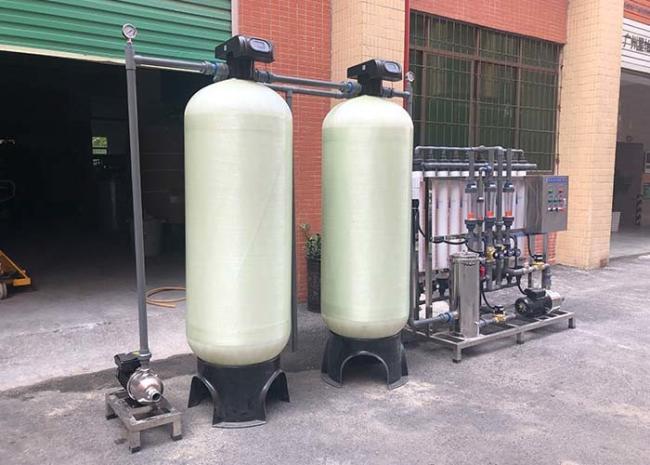

5. Pictures Show

Packing & Delivery

We have stock all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^

Delivery time: 1-7working days for small machine, 15-45working days for big machine(depend on raw materials stocking)

Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
