35 TON SWL A-FRAME Crane for OSV Vessel

The 35 TON SWL A-Frame is a specialized crane designed for offshore operations. Constructed from a robust steel structure and powered by an integrated engine and hydraulic power unit, it can be controlled either autonomously or remotely. This versatile equipment is ideal for various undersea tasks, including anchor handling, buoy handling, diving support, and the launch and recovery of submersibles.

Design and Dimensions:

Mounted on the stern of an OSV vessel

Overall height: 11,020 mm

Overall width: 13,670 mm

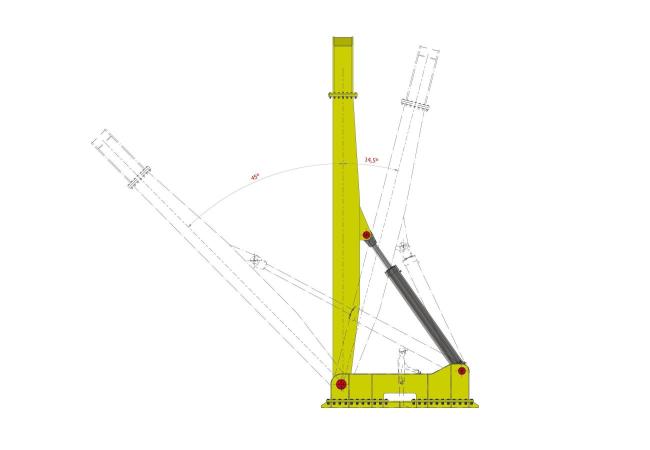

Outward angle: 45 degrees

Inward angle: 14.5 degrees

Capabilities:
Offshore launch and recovery
Suitable for subsea inspections, including submarine cables, pipelines, and other underwater assets
Supports a variety of maintenance and repair tasks

Included:
Complete hydraulic power unit
Certificates and approved drawings
Manuals and spare parts
Load charts

Installing the A-Frame on your vessel enhances its capability to perform a wide range of undersea operations efficiently and effectively. It is particularly well-suited for tasks such as:

Inspection: Ensures thorough inspection of submarine cables and pipelines.
Maintenance: Facilitates comprehensive maintenance and repair of subsea assets.
Diving Support: Provides reliable support for diving operations.
Launch and Recovery: Streamlines the launch and recovery processes for submersibles and other underwater equipment.

Equip your OSV vessel with our state-of-the-art 35 TON SWL A-Frame to optimize your offshore operational capabilities and ensure high performance in challenging marine environments.

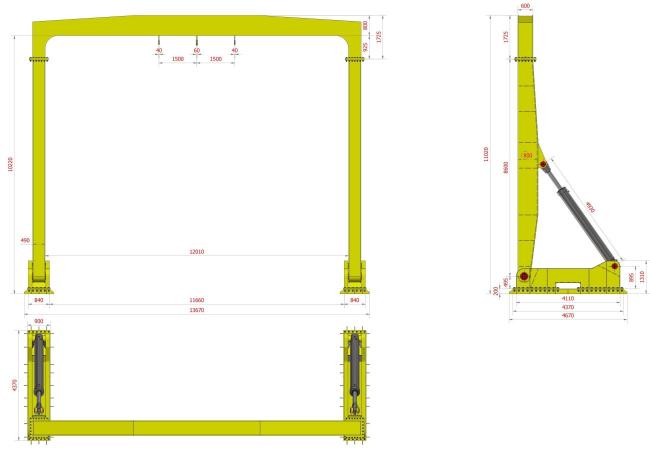

GA Drawing

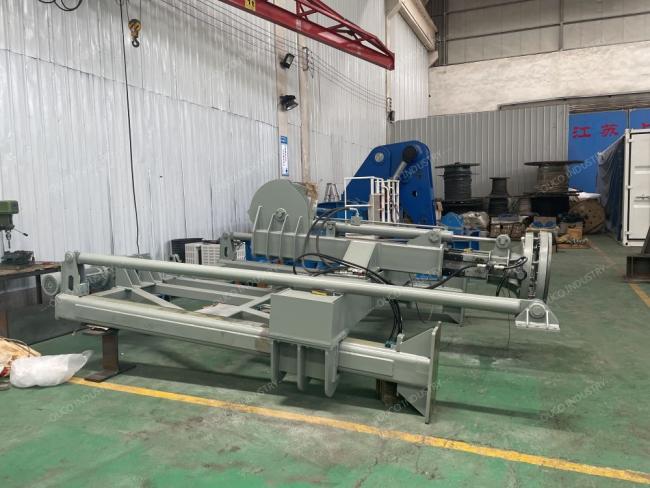

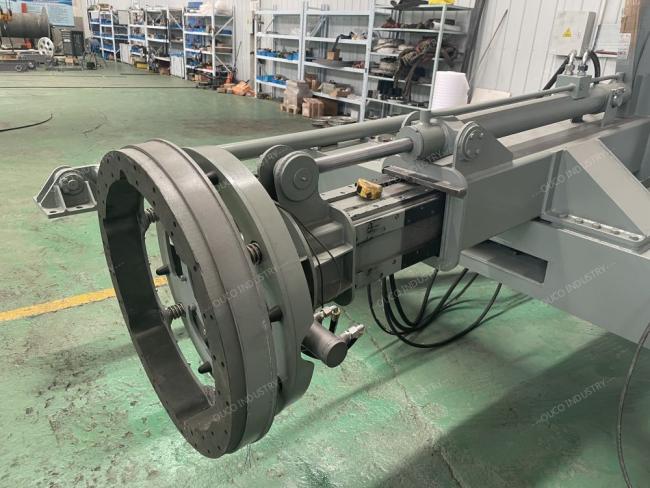

Product Picture
