Industrial Semi Automatic Spreader Container 20 / 40 Feet Compact Structure
Price:
negotiation
MOQ:
1
Delivery Time:
45 days
Brand:
OUCO
Product Description
Handling spreader 20 feet and 40 feet Semi-Automatic Spreaders Port spreader
Product description:
The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.
Standard and Heavy Duty Models are available.
General Arrangement:
Technical Specifications:
| For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
| Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| Self-Weight | 2t | Self-Weight | 3.5t |
| Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| Spring Stroke | 100mm | Spring Stroke | 100mm |
| Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |
Production process at OUCO workshop:

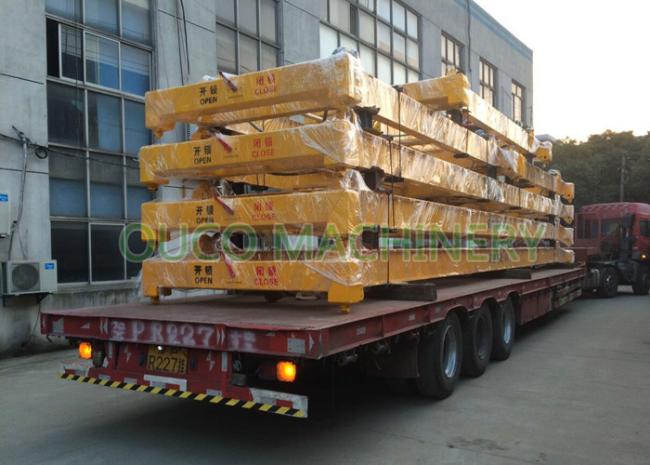

Package and Shipping from OUCO factory:
