Bulk Handling Mechanical Rope Grab Clamshell Type Low Empty Weight High Efficiency
OUCO Bulk Handling Machinery Rope and Hydraulic Clamshell Grab Bucket
Product Description

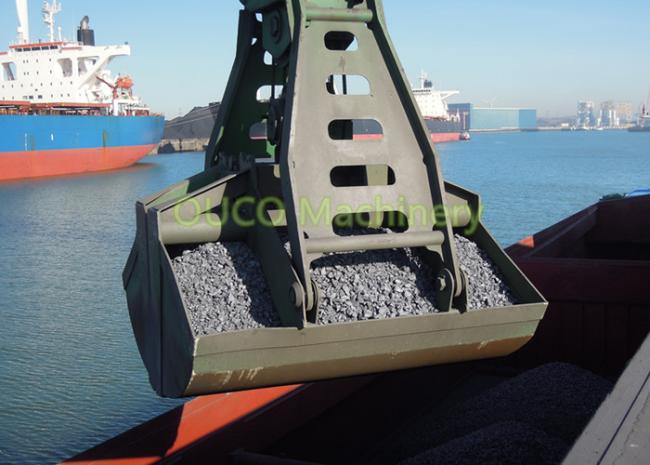

OUCO grabs are designed and manufactured for loading and/or unloading all kind of scrap, bulk, rock materials. The grabs are made of the best possible materials. The complete shells of the grabs are made of extreme strong and wear resistant steel. The upper structure and pulley blocks are made of high tensile structural steel.
Product Feature
1. Closed, half closed or open buckets
2. Central lubrication system
3. Maintenance free bearings
4. Maximum capacity
5. Low empty weight
6. Hardened Shafts
Technical Parameters
| Model | 2Dxx-xx | |||||||||||||||||
|
Lifting Weight (t) |
2.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 6.0 | 8.0 | 8.0 | 8.0 | 10 | 10 | 10 |
|
Grab Weight (t) |
1.01 | 1.49 | 1.15 | 1.46 | 1.46 | 1.70 | 2.38 | 2.38 | 2.0 | 2.25 | 2.20 | 2.22 | 3.94 | 3.7 | 3.64 | 4.9 | 4.60 | 4.36 |
|
Grab Volume (m³) |
0.7 | 1.0 | 1.1 | 1.5 | 1.7 | 2.0 | 1 | 1.6 | 1.8 | 2.5 | 2.7 | 2.5 | 1.6 | 3.0 | 4.0 | 2.0 | 3.4 | 5.0 |
| Load Capacity(t) | 1.4 | 1.5 | 1.85 | 1.54 | 1.54 | 1.31 | 2.6 | 2.6 | 3.0 | 2.75 | 2.8 | 4.0 | 4.0 | 4.3 | 4.36 | 5.1 | 5.4 | 5.64 |
| Fulls | 5 | 5 | 3 | 3 | 3 | 3 | 5 | 5 | 4 | 3 | 4 | 5 | 5 | 5 | 3 | 5 | 5 | 3 |
| A(m) | 1.03 | 1.18 | 1.20 | 1.30 | 1.35 | 1.45 | 0.97 | 1.40 | 1.50 | 1.50 | 1.62 | 1.40 | 1.80 | 1.65 | 1.81 | 1.60 | 1.78 | 2.01 |
| B(m) | 1.65 | 1.95 | 2.05 | 2.24 | 2.24 | 2.28 | 2.42 | 2.40 | 2.26 | 2.56 | 2.42 | 2.48 | 2.20 | 2.75 | 3.00 | 2.50 | 2.94 | 3.20 |
| C(m) | 1.82 | 2.37 | 2.35 | 2.84 | 2.84 | 2.60 | 2.76 | 2.76 | 3.04 | 3.04 | 3.04 | 3.01 | 2.70 | 3.13 | 3.53 | 2.65 | 3.18 | 3.90 |
| D(m) | 1.78 | 2.62 | 2.74 | 2.89 | 2.89 | 2.80 | 3.15 | 3.15 | 3.18 | 3.28 | 3.25 | 3.30 | 3.90 | 4.29 | 4.05 | 3.92 | 4.30 | 4.30 |
| E(m) | 1.66 | 2.11 | 2.26 | 2.38 | 2.37 | 2.25 | 2.54 | 2.54 | 2.66 | 2.67 | 2.82 | 2.62 | 2.98 | 3.29 | 3.45 | 2.99 | 3.31 | 3.55 |
|
Wire Rope Diameter Φ(mm) |
17.5 | 16.0 | 17.5 | 17.5 | 17.5 | 17.5 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | 19.5 | 25.5 | 25.5 | 25.5 | 28.5 | 28.5 | 28.5 |
|
Pulley Diamrter Φ(mm) |
244 300 |
300 350 |
400 | 400 | 400 | 400 | 420 | 420 | 420 | 420 | 420 | 360 | 500 | 500 | 500 | 500 | 500 | 500 |
| Model | 4Dxx-xx | ||||||||||
|
Lifting Weight (t) |
12.5 | 16 | 16 | 16 | 16 | 20 | 25 | 25 | 32 | 40 | 50 |
|
Grab Weight (t) |
7.2 | 7.2 | 8.03 | 6.40 | 6.87 | 8.3 | 10 | 15.1 | 14.0 | 16.9 | 21.0 |
|
Grab Volume (m³) |
7.8 | 2.8 | 3.1 | 5.05 | 9 | 11.5 | 16.6 | 5 | 22.5 | 23.1 | 23.2 |
| Load Capacity(t) | 5.4 | 9.0 | 8.0 | 9.5 | 9.0 | 11.7 | 15 | 9.9 | 18.0 | 33.1 | 29.0 |
| Fulls | 3 | 5 | 5 | 4 | 3 | 4 | 4 | 3 | 3 | 3 | 3 |
| A(m) | 2.60 | 1.58 | 1.76 | 2.30 | 2.19 | 3.19 | 3.46 | 2.30 | 4.00 | 4.02 | 4.36 |
| B(m) | 3.30 | 2.80 | 2.72 | 2.83 | 3.20 | 3.18 | 3.66 | 3.29 | 3.98 | 4.01 | 4.33 |
| C(m) | 3.91 | 3.33 | 3.36 | 3.78 | 4.29 | 4.34 | 4.90 | 4.07 | 5.34 | 5.48 | 5.90 |
| D(m) | 4.90 | 4.32 | 4.58 | 4.26 | 4.94 | 4.91 | 5.42 | 5.16 | 5.76 | 7.21 | 8.07 |
| E(m) | 4.15 | 3.62 | 3.68 | 3.88 | 4.32 | 4.37 | 4.86 | 4.66 | 5.04 | 6.18 | 6.96 |
|
Wire Rope Diameter Φ(mm) |
23.5 | 25.5 | 25.5 | 26 | 25.5 | 28 | 32.5 | 36.5 | 36 | 43 | 46 |
|
Pulley Diamrter Φ(mm) |
600 |
700 | 600 | 600 | 600 | 640 | 710 | 930 | 710 | 1120 | 1210 |
Product Details
FAQ
1. Q:In the material, how should we choose and determine?
A:The selection of the material of the grab edge plate, generally speaking, is the use of high strength wear-resistant steel plate.
2. Q:Electric grab, its use in the process should pay attention to what aspects?
A:In use process, should pay attention to the wire rope and the important parts, because, if the improper use of words, then, the prone to breakage, so we must have enough attention.
3. Q:Which is an important way to improve service life?
A:The important way to improve the service life of the grab bucket is to improve the abrasion resistance of the grab pin and shaft sleeve, and to improve the abrasion resistance of the blade of the bucket body.
4. Q: The type of grab and its span size, whether will affect the grab price?
A:The type of grab, such as the hook or double hook, will affect the price of the grab, because the type is different, then the corresponding price is also different. As for the span of the grab, it is also one of the factors affecting the price of the grab, so it will certainly have an impact.
