Product description
OUCO Yacht crane is specially designed to lift or lower goods in and out of the water for repairing, storage or cleaning . The safe and controllable system will reduce the cost for maintenance significantly .The hydraulic lifting cylinder,cables and sheaves are all built in the crane mast resulting in a smooth looking crane. OUCO manufactures small service cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories.
Main Features and advantages
1. Easily mounted/bolted directly to the deck.
2. Less Installation area.
3. well rust-proof surface treatment.
4. Modern and attractive appearance design and really suit for luxury private yachts.
5. Many choices in operation type-- handle manually operation or radio remote control operation.
6. The material of our hydraulic cylinder is durable steel alloy, instead of Aluminium alloy cylinder.
Technical Specification
| SWL | 1T@4M |
| Working Radius | 1.7~4m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 20m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 360° |
| Luffing Time | ~40s |
| Extension Time | ~25s |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 7.5KW |
| Motor Speed | 1760r/min |
| Power source | AC440V, 60Hz, 3P/AC380V, 50Hz, 3P |
| Protect Class | IP44 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement
Customer Bulid
OUCO factory specializes in crane industry for over 30 years. OUCO can design and manufacture any type cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If in need, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year ( If in need, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*--+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

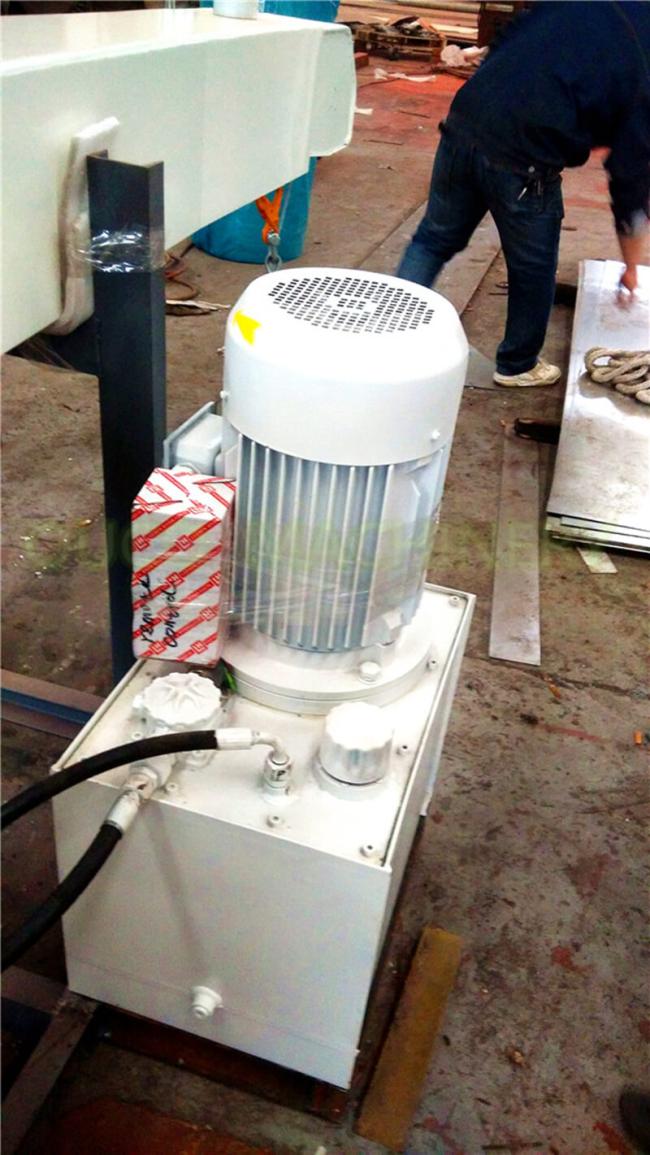

Detailed Images
Packaging & Shipping
FAQ
Q: What’s working radius of your crane?
A: From 1m to 100m, we can design and make according to your requirement.
Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
Q: Can this crane be explosion proof?
A: Sure, we can equip any extra function based on your requirement.
Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole piece.
