High Efficiency Marine Electric Winch Electric / Hydraulic Good Stability
OUCO Electric Marine Ship Anchor Mooring Windlass
Product Description

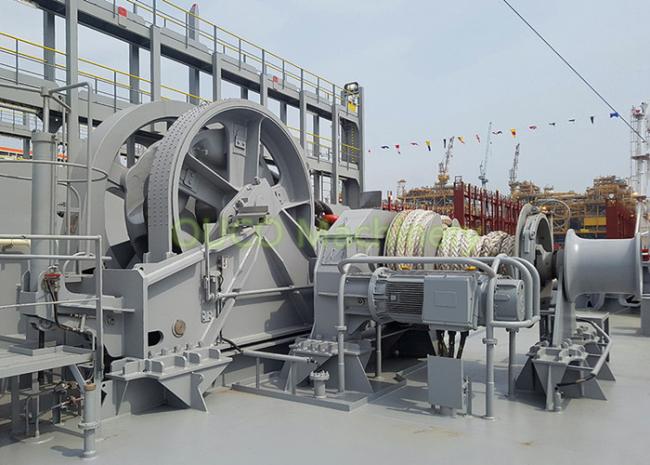

Electric Marine Ship Anchor Mooring Windlass is a combined multi-function winch, which can be used as anchor winch, also can be used as mooring winch. So the winch has gypsy wheel for anchor chain, it also has drum for wire rope. The anchor and mooring winch is widely used on different kinds of boat for anchoring and mooring.
Product Feature
1. Driven Mode:Electric or Hydraulic
2. Configuration: It consists of the windlass, windlass brakes,warping end,hydraulic motor, drum, main axis, drum brake, operation mechanism of clutch,supporting walls and the base,etc.
3. Chain Diameter: From 12.5mm to 100mm.
4. Anchor hoist normal speed: Over 9m/min
5. Rated Pull: From 6 KN to 500KN
6. Holding Load: with chain stopper,Breaking Load
7. Brake: Manual or Hydraulic
8. Claws Clutch: Manual or Hydraulic
9. Control Option: Local with Remote Control
10. Certificate: ABS, GL, LR, BV, NK,DNV, CCS, etc.
Genernal Arrangement
Technical Parameters
| Name |
Rated Pull (KN) |
Rated Speed (m/min) |
Drum Capacity (m) |
| 400kN Dia.Hydraulic Winch | 400 | 4-30 | Dia.44x480 |
| 450kN Dia.Hydraulic Winch | 450 | 4-30 | Dia.46x480 |
| 500kN Dia.Hydraulic Winch | 500 | 4-30 | Dia.46x500 |
| 550kN Dia.Hydraulic Winch | 550 | 4-30 | Dia.48x500 |
| 600kN Dia.Hydraulic Winch | 600 | 4-30 | Dia.50x500 |
| 630kN Dia.Hydraulic Winch | 630 | 4-30 | Dia.52x500 |
| 650kN Dia.Hydraulic Winch | 650 | 4-30 | Dia.52x500 |
| 700kN Dia.Hydraulic Winch | 700 | 4-30 | Dia.52x500 |
| 750kN Dia.Hydraulic Winch | 750 | 4-30 | Dia.52x500 |
| 800kN Dia.Hydraulic Winch | 800 | 4-30 | Dia.54x600 |
| 1000kN Dia.Hydraulic Winch | 1000 | 4-30 | Dia.56x800 |
| 1050kN Dia.Hydraulic Winch | 1050 | 4-30 | Dia.56x800 |
| 1250kN Dia.Hydraulic Winch | 1250 | 4-30 | Dia.58x1000 |
| 1500KN hydraulic winch | 1500 | 4-30 | Dia.58x2000 |
| 2000KN hydraulic winch | 2000 | 4-20 | Dia.68x2000 |
| 2500KN hydraulic winch | 2500 | 4-20 | Dia.76x2000 |
Product Details
FAQ
1.Your need quantity?(Set)
2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port)
3.Driven type?(Electric or Hydraulic or Diesel)
4.Working loading capacity?(Ton) or Pull force?(KN)
5.Working speed?(m/min)
6.Rope diameter?(mm)
7.Rope capacity?(m)
8.Power supply?(Voltage---50Hz/60Hz---3Phase)
9.Any other special requirements?
