Full Hydraulic Telescopic Container Spreader Low Noise Mono Beam Design
Price:
negotiation
MOQ:
1 set
Delivery Time:
7 days
Brand:
OUCO
Product Description
OUCO Full Hydraulic Telescopic Container Spreader
Product Description
A telescopic spreader for lifting loads of various lengths i.e. load-holders or containers, comprising a main beam and within its longitude at least two opposingly movable telescopic beams. These have at their outer ends means for coupling to the load to be lifted. The main beam has extensions at its upper gable ends which extend out almost as far as that on the same side telescopic beam's outer end when that telescopic beam is in its innermost position. Each extension is designed to accept the extended inner end or that in the opposite direction extensible telescope beam when in its innermost portion. By the invention the forces the main beam are reduced thus rendering the beam a lighter weight.
Product Feature
1. Telescopic drive belt instead of chain to reduce noise, weight and maintenance
2. Safe and easy access to telescopic drive and components due to mono beam design
Technical Parameters
| Model: SR-T | Motor Power | For Spreader 7.5KW/ For Rotatory Structure 4KW | |
| For Operation With ISO Standard 20' and 40' Containers | Overload Protective Value of Motors | Max 22A | |
| Rated Lifting Load | 41t | Precaution Class | IP 55 |
| Allowable Load Eccentricity | Length Direction 12.5m, Width Direction 0.25m | Voitage of Valves | AC 220V |
| Load of Lifting Lugs at Four Corner of Spreader | 10t x 4 | Hydraulic Part | |
| Self-Weight | 14.5t | Flow Quantity of Oil Pump | ~ 40L/min |
| Operation | Operating Pressure of the System | 100Bar | |
| Expansion Time(20' to 40') | ~ 30s | The Volume of Oil Tank | 140L |
| Twistlock Rotation Through 90° | ~ 1s | Ambient Temperature | -20℃~ +40℃ |
| Flipper Through 180° | 5~7s | Twistlock Mode | ISO Lloating Twistlock, Driven by an Oil Cylinder |
| Gravity Point Adjustment(±200mm) | ~ 5s | Telescopic Mode | The telescopic system is driven by means of a hydraulic motor and reduction gearbox connected to an endless chain |
| Rotation (±220°) | ~ 35s | Flippers Device | The corner tlippers are drived by hydraulic motor |
| Electrical Part | |||
| Power Voitage/Frequency | AC 380V(3P)/60HZ(Optional) | ||
| Control Voitage | AC 220V(Optional) | ||

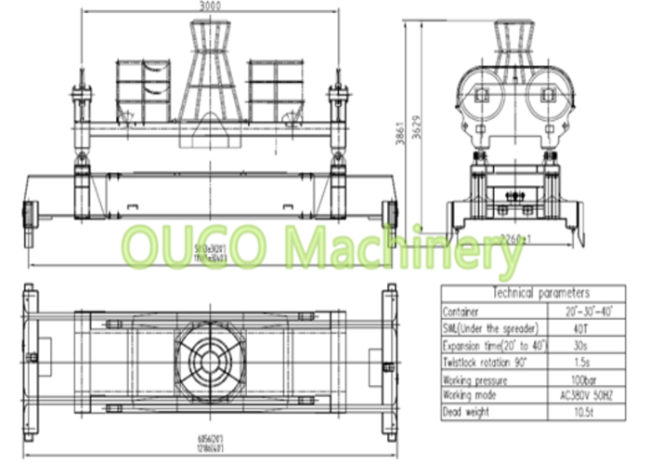

Genernal Arrangement
