Dust Proof Eco Hopper Port Unloading Mobile Hopper Large Bucket Capacity
OUCO Discharging Port Hopper Dust Proof Hopper ECO Hopper
Product Description
Eco dust hopper equipped with a simple and effective dust-proof system to minimize dust flying during grab operating.
We also provide custom engineering solutions that ensure the best performance meets the customer's specific application requirements. For materials that are difficult to handle, such as bauxite, we can offer a unique hopper design.
We can offer according to customers’ specific applications. Hopper can be designed to be directly discharged onto the conveyor belt, can also be unloaded to the truck, unloading way is determined by the customer.
Product Feature
1. The hoppers Large bucket capacity, and large open area;
2. The hoppers are large stowing surface, and accordingly high coefficient of fullness;
3. The hoppers are made of top quality structural and high strength steel, the adapters are made of domestic top
quality products;
4. The hoppers save working time, improve working efficiency.
Technical Parameters
| Load Capacity | 1500-2000 t/h | Specification of Dust Catcher | 15Kw*2sets |
| Material | 7.5Kw*2sets | ||
| Density | ~1.0-1.8 t/m³ | Whole Decibel | Less than 80 DB |
| Granullarity | |||
| Volume of Hopper | ~50m³ | Motor of Hydraulic Station | 1.5Kw 440V 60HZ |
| Suitable Place | Load to Truck | Total Power | 105Kw |
| Load Capacity of Each Land Legs | 35T | Specification of Legs | Φ356*20 circular tube |
| Size of Load Mouth | 2000*800 mm | Dead Weight of Hopper | ~75T |
| Full Load Capacity of Hopper | 80T | Size of Steel Grating | 400mm * 400mm |

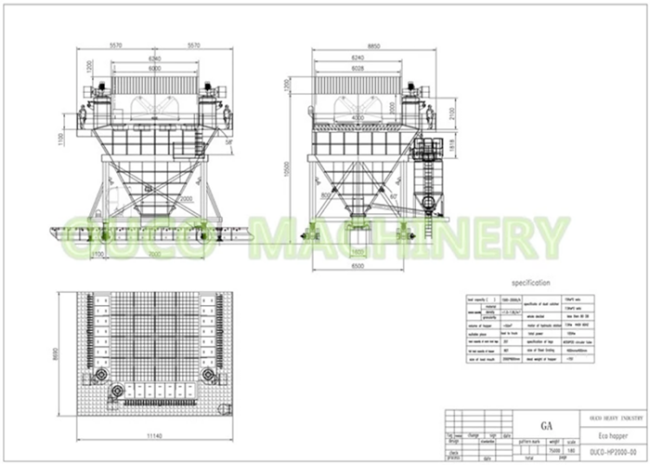

Genernal Arrangement

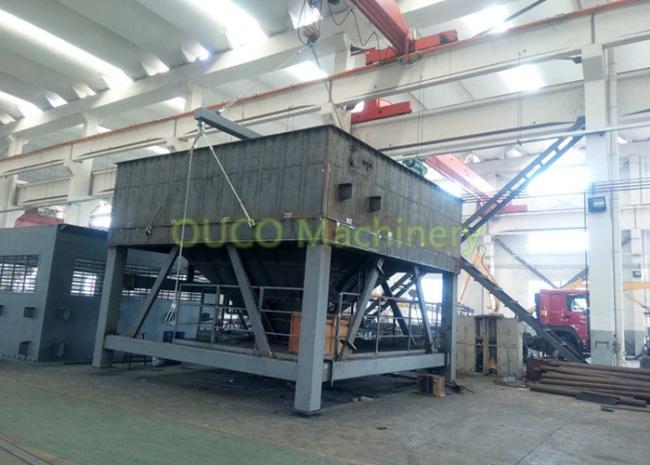

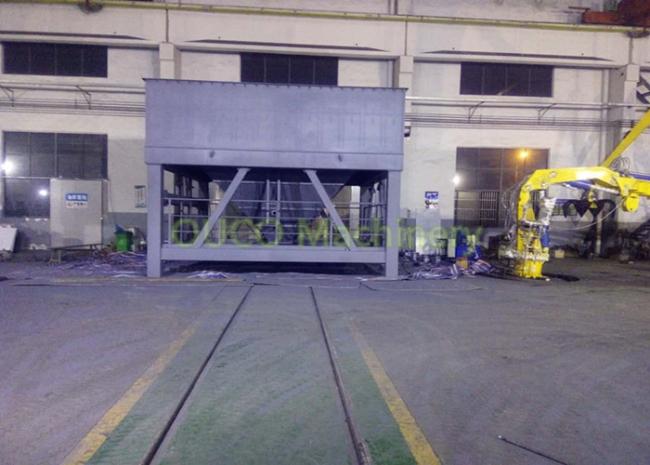

Product Details
FAQ
We can provide GA for you with below information you give to us.
2. If need storing or not.
3. The volume of the hopper
4. The type of hopper? Simple hopper or dust catching hopper.
5. Movable with wheels or fixed ?
6. Which type of loading under the hopper?
a. If truck loading, please inform the height of the trucks.
b. If conveyor belt loading, please inform the height/width/speed of the conveyor belt.
c. If bagging, please inform the size of the bags.
7. If you have other special requirements, please also tell us clearly.
