Port Truck Loading Hopper Rail Mounted High Working Efficiency Steel Construction
OUCO Rail Mounted Port Hopper Port Truck Loading Hopper
Product Description
The hoppers made by our company are suitable to load and unload the coal cinder, the cement powder and the iron
powder and so on. It can be designed in nonstandard according to the needer.It can be installed on dust catcher,
electric hydraulic door, vibrant supplying material devices and working devices. All of these can greatly improve the
working efficiency.
Product Feature
Fixed hopper mainly used for loading and unloading the coal cinder, the nickel mines, the cement powder and the iron
powder gran sand soon. It doesn't need specialized berth and fixed port facilities, so the foundational facilities don't
need expansion. It can deal with various kinds of supplies.
Smaller hoppers can be used as a dosing system for blending and mixing materials.
Technical Parameters
| Particulars | Recommendations |
| Hopper | 1 set |
| Construction | Steel |
| Storage Capacity | 2.5 Times Grab Volume(Min.) |
| Discharge Capacity | 750TPH |
| Top Opening | 9000mm * 10000mm(Max.) |
| Bottom Openging | 800mm * 800mm(Min.) * 2 Nos. |
| Base Plate | 10 Thick MS |
| Liners | 8+4 Ultra Plate |
| Manholes | 2 Nos.(Min.) |
| Travel Assembly | 4 Nos. Double Wheel Solid Rubber Tyre Bogies |
| Drop Legs & Pads | 4 Nos. |
| Side Sheeting | 3600mm * 10000mm * 2 Sides |
| Dust Curtain | 4000mm * 9000mm * 2 Sides |
| Safety Handrails | All around the sides at all floors |
| Stairs/Ladder | Inbuilt Steel Structure For All Floors |

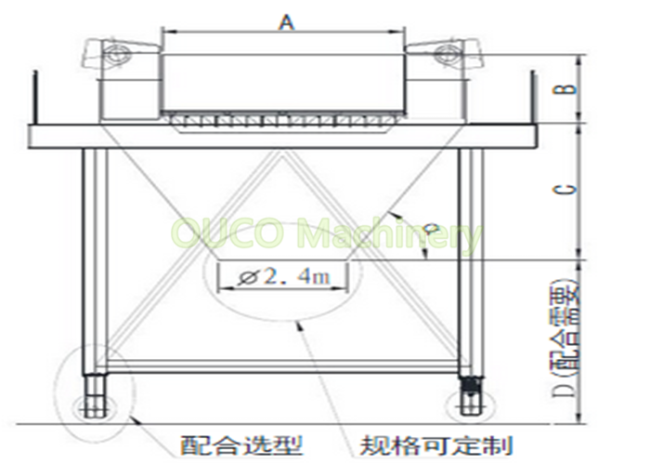

Genernal Arrangement

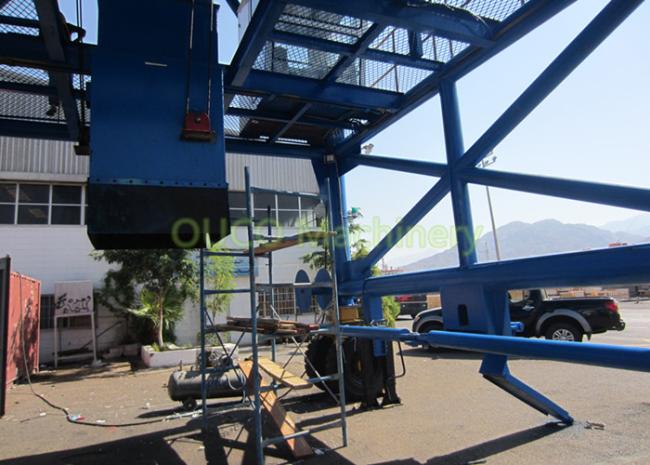

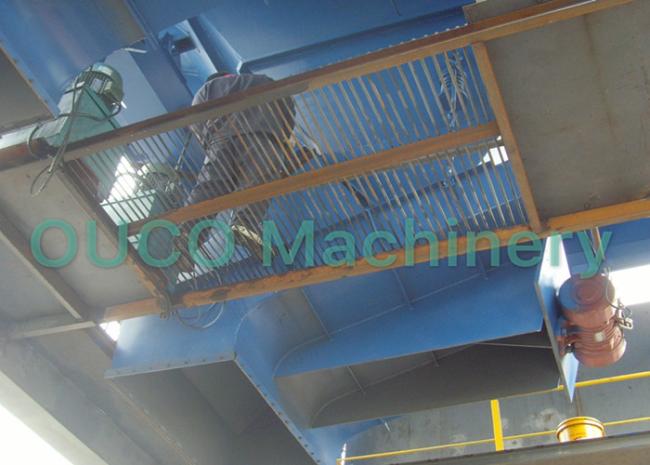

Product Details
FAQ
We can provide GA for you with below information you give to us.
2. If need storing or not.
3. The volume of the hopper
4. The type of hopper? Simple hopper or dust catching hopper.
5. Movable with wheels or fixed ?
6. Which type of loading under the hopper?
a. If truck loading, please inform the height of the trucks.
b. If conveyor belt loading, please inform the height/width/speed of the conveyor belt.
c. If bagging, please inform the size of the bags.
7. If you have other special requirements, please also tell us clearly.
