Coal Unloading Hopper High Safety Strong Structure Low Power Consumption
OUCO High Efficiency Belt Conveyor Port Hopper For Coal
Product Description
Eco hopper provides a series of square hoppers to hold a grab capacity of 1 to 37 cubic meters. Each hopper size has a corresponding high or low level frame, depending on the choice of discharge equipment. Because all our standard jumpers follow the same design principles, component modules can be standardized to reduce production period.
Eco dust hopper equipped with a simple and effective dust-proof system to minimize dust flying during grab operating. Hopper is divided into inside and outside, separated by elastic rubber dust isolation device. The main function of the outer hopper is to receive cargoes from grabs.
Product Feature
1. Suitable for discharge by ship mounted or shoreside grab cranes;
2. Robust design ideally suited to cope with the tough conditions encountered in ports;
3. The hoppers are designed to suit the characteristics and flow properties of virtually any bulk material such as:
• Clinker • Copper Concentrates
• Slag• Sulphur
• Gypsum• Biomass (Woodchip etc.)
• Limestone• Bentonite
• Iron Ore• Nickel Ores
• Bauxite• Soda Ash
• Coal• Many Others
Technical Parameters
| Particulars | Recommendations |
| Hopper | 1 set |
| Construction | Steel |
| Storage Capacity | 2.5 Times Grab Volume(Min.) |
| Discharge Capacity | 750TPH |
| Top Opening | 9000mm * 10000mm(Max.) |
| Bottom Openging | 800mm * 800mm(Min.) * 2 Nos. |
| Base Plate | 10 Thick MS |
| Liners | 8+4 Ultra Plate |
| Manholes | 2 Nos.(Min.) |
| Travel Assembly | 4 Nos. Double Wheel Solid Rubber Tyre Bogies |
| Drop Legs & Pads | 4 Nos. |
| Side Sheeting | 3600mm * 10000mm * 2 Sides |
| Dust Curtain | 4000mm * 9000mm * 2 Sides |
| Safety Handrails | All around the sides at all floors |
| Stairs/Ladder | Inbuilt Steel Structure For All Floors |

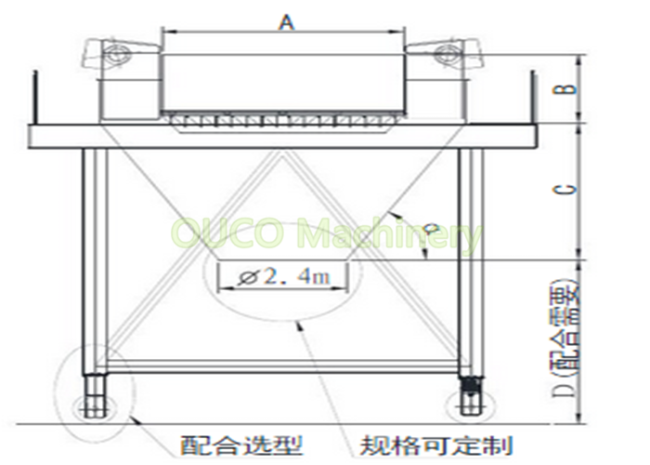

Genernal Arrangement

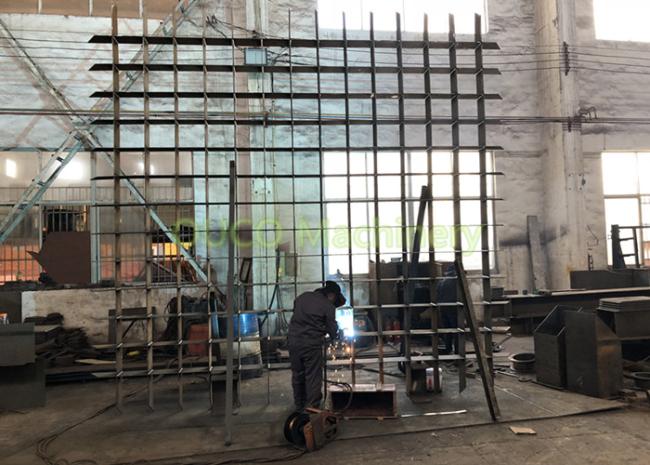

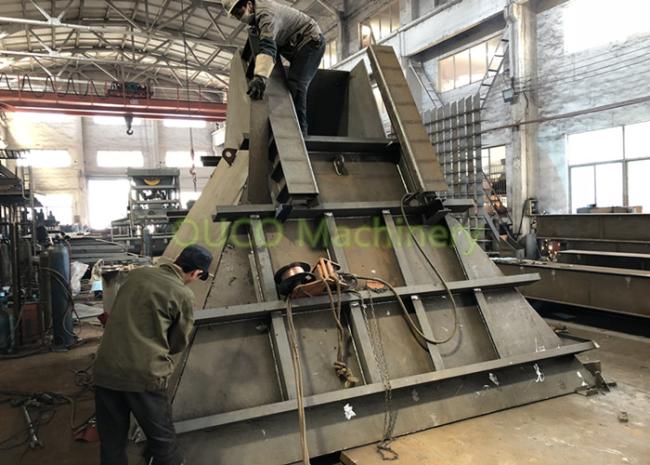

Product Details
FAQ
We can provide GA for you with below information you give to us.
2. If need storing or not.
3. The volume of the hopper
4. The type of hopper? Simple hopper or dust catching hopper.
5. Movable with wheels or fixed ?
6. Which type of loading under the hopper?
a. If truck loading, please inform the height of the trucks.
b. If conveyor belt loading, please inform the height/width/speed of the conveyor belt.
c. If bagging, please inform the size of the bags.
7. If you have other special requirements, please also tell us clearly.
