Light Weight Semi Automatic Container Spreader Bar For Handling ISO Containers
Semi-automatic container spreaders for 40ft/20ft standard container
Product Description
20 40ft container spreader designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.
1. Available in 20' and 40' versions to handle 20-40 ISO containers.
2. Capacity up to 36 Tons
3. Light weight spreader
20' Spreader - 2.2t
40' Spreader - 3.2t
The Semi-Automatic container spreader is used to handle ISO containers.The fixed frame is mounted to a crane by bridle sling and provides a simple way to load and unload containers. Great for ports who need to handle containerson and off a ship, but have lower lift counts.
Technical Parameters
| For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
| Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| Self-Weight | 2t | Self-Weight | 3.5t |
| Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| Spring Stroke | 100mm | Spring Stroke | 100mm |
| Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |
Genernal Arrangement

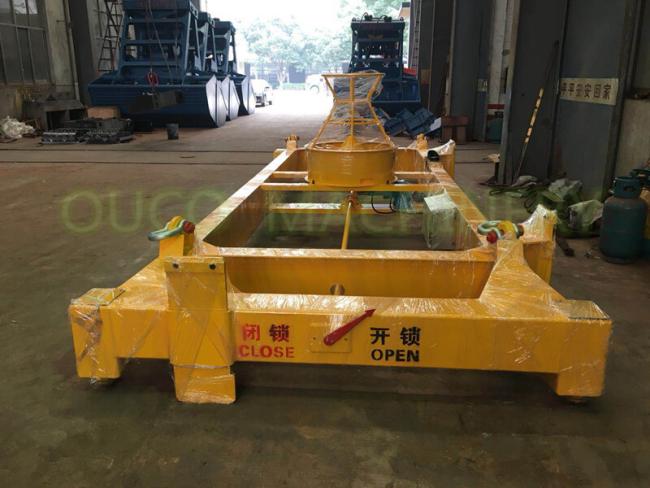

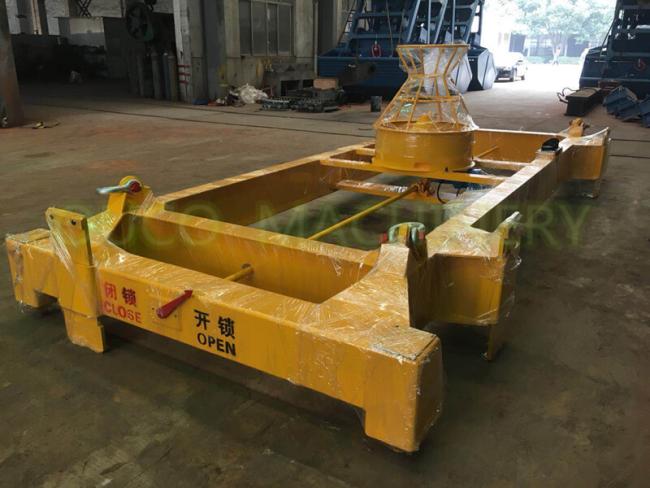

Product Images

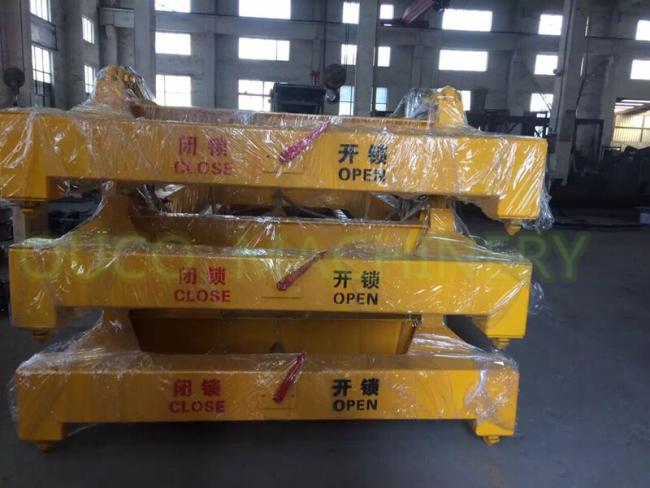

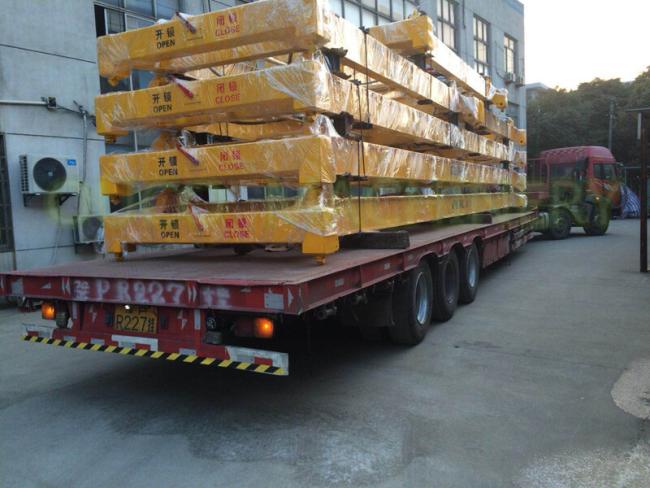

Packing & Delivery
