IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System
IP67 Waterproof through hole Slip Ring with ID150mm for automatic industrial system
ECN150-12P1-IP67 is water proof slip ring with IP67 and large size inner bore 150mm electrical collector from CENO Electronics. CENO has delivered trusted technology products and services to the offshore petroleum, oceanographic, seismic and maritime industries for nearly 20 years. CENO water-proof slip rings are designed to function in extreme marine environments. CENO has over than 5000 designs for various industrial these years. For more information about how CENO’s slip ring can fit your specific applications, please contact us.
Features
- Different sealing forms and boundary can be selected
- Can be integrated various data
- Install easily & transmit stably
- Extended protection grade IP67
Applications
- Mine
- Offshore
- oceanographic
- Marine industrial
- Medical equipment
Optional
- Circuit, Voltage, Current
- Protection Grade
- Contact / Housing Materials
- Lead wires
- Working speed
Specification
|
ECN150-12P1-IP67 |
Specification |
| Current & Circuits |
12circuits*5A |
| Rating Voltage |
0~250VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Stainless steel + Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP67 |
| Operating speed | 0~40rpm |
| Lead wire size | Six-core Cable |
|
Lead wire length |
Rotor : 1000mm Stator : 1000mm |
| Inner Diameter | Ø150mm |
| External Diameter | Ø298mm |
| Installation | Fix stator side to main shaft |

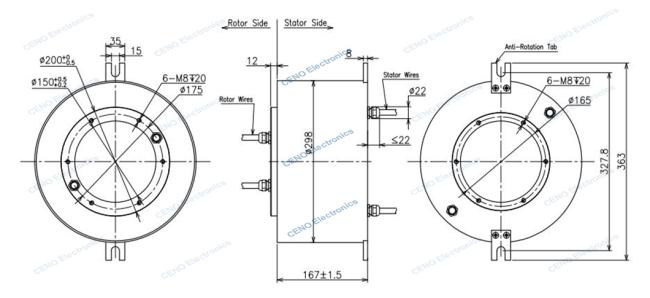

Outline drawing
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
