2000RPM High Speed Miniature Single Channel Fiber Optical Slip Ring

The miniature single-channel fiber optical slip ring, with a mounting diameter of only 6.8mm, compact size and is especially suitable for installations where the space is small.Single or multimode fiber can be selected. It not only has good optical performance, but also waterproof and dustproof ,transmit signal via fiber optic,no disclose,no EMI and high speed reliable operation.This product is one of the standard products, long-term material preparation, support for fast delivery.

Features

• Apply to single mode or multi mode photoelectric rotary connection
• Transmit signal via fiber optic,no disclose,no EMI
• Convenient to integrate power slip ring

Applications

• Radar system
• Medical equipment
• Military equipment

Optional

• Fiber channel number
• Connector type
• Fiber type
• Fiber length

Specification

FCN01G-6		Picture
Fiber type	SM/MM
Fiber channel	1
Wavelength range	650~1650nm
Return loss	≥30dB
Insertion loss,max	<1.5dB
Rotation speed,max	2000rpm
Operation temperature	-20℃~+60℃
Weight	15g
IP grade	IP54
Power handing peak	≤23dBm

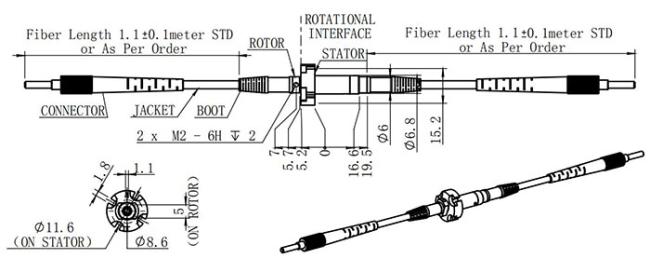

Outline drawing
