Lower Torque Lower Electrical Noise Solid Shaft Signal Rotary Union
This rotary joint stator and rotor side both are solid shaft, stator side has a flange for easy assembly ,rotor side by screw fixing, transmitting current and signal,operating temperature at -40~+70℃ for extreme temperatures. it provides smoother running, lower torque and lower electrical noise than competitive slip rings. applied in many applications and equipment,provide system solutions for worldwide.
Specification
| ECN000-06P1-26S Specification | |
| Current | 6*5A,19*1A,1*2A,2*signal,2*1A |
| Voltage | 24VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength |
≥500V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance |
300MΩ@300VDC(power) 100MΩ@300VDC(signal) |
| Operating speed | 0-40 rpm |
| Contact material | precious metals |
| Operating temperature | -40~+70℃ |
| IP protection grade | IP54 |
Features
- Good figure with a stable performance
- Low friction, long life,low torque, smooth rotation
- Transmit current and signal
Optional
- Signal type
- Circuit number
- Current rating
- Housing material
Applications
- Industrial application
- Construction engineering
- Package equipment
- Radar antenna

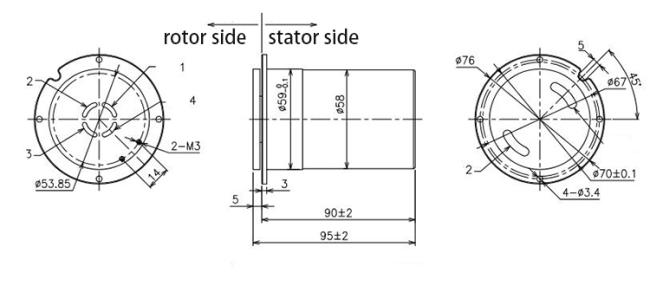

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
