1. Machine introduction:

The fish feed machine production line is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The aquaculture fish feed can float on the water surface without dissolution for over 12 hours. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.

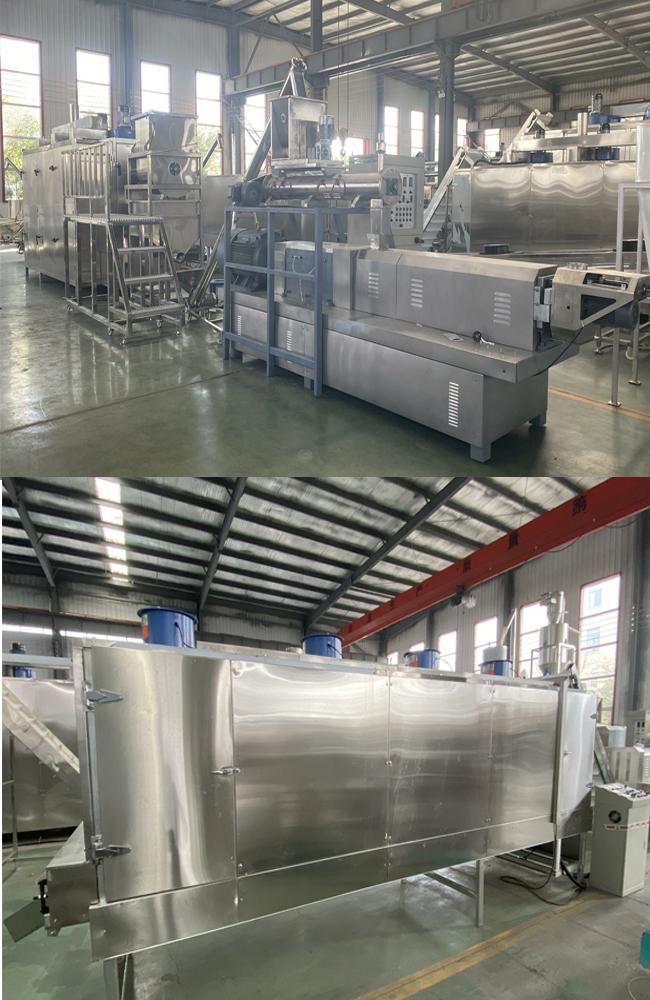

2. Flow of chart fish feed extruder machine production line:
Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -cooling conveyor.

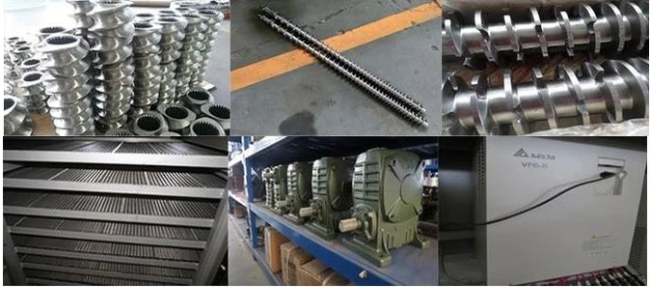

3. Component details of pet food production line
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
4. Machine materials: All the aquaculture fish feed machine production line are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
5. Raw materials: adopts corn flour,rice power ,fish meals materials.
Parameter of the fish food making machine:

6. Extruding system:
The working principle is forcing the ingredients forward to be conveyed and extruded
in the sealed charging barrel by making use of the engaged twin screws, at the same time, heating the ingredients through heating-cycles, the ingredients are
mixed, melt and sheared step by step under the conditions of high temperature and pressure. At last the ingredients are inflated at the point of being extruded
out. This system possesses self-cleaning function.
