High Pressure Cement Float Equipment For Oilfield Good Performance Api Standard
Price:
Negotiable
MOQ:
1
Delivery Time:
depends on quantity
Brand:
Puyang Zhongshi Group
Product Description

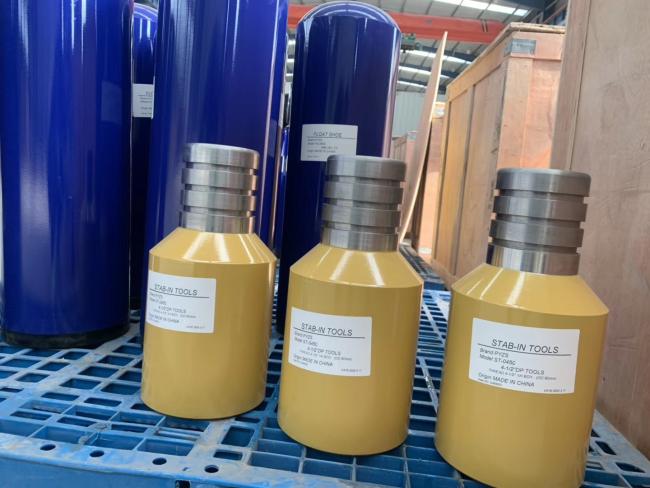

Cementing tools float shoe and float collar Non-rotating type
Description
The cement float collar& shoe offer dependable performance for all classes of oil and gas wells. The plunger type valves prevent cement backflow, provide casing buoyancy during run-in, and act as internal bops during the process of running and cementing the casing. Our float collar & shoe sizes range from 5 1/2” – 30” with float ball, stab in, non-rotating, spring and single / double valve types. Products in our factory are all manufactured to API standard, with strict quality control and inspection.
Features
- Special designed body destruction retains higher pressure.
- The valve is capable of withstanding long periods of circulation.
- Either PDC or rock bit drillable
- Size :4 1/2~30"
- Qualified concreting procedure.
Specification
| Specification(in) | O.D.(mm) | I.D. (mm) | Total length(mm) | Min.Dia. (mm) | Conn Type | Affordable strength of back-pressure(Mpa) | |
| Float Shoe | 5 | 140.3 | 110 | 495 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 122 | 514 | 55 | 5 1/2 BCSG | 35 | |
| 7 | 194.46 | 162.5 | 533 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 269.88 | 225 | 550 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 339.7 | 319 | 550 | 77 | 133/8 BCSG | 35 | |
| 20 | 534 | 475 | 652 | 77 | 20 BCSG | 35 | |
| Float Collar | 5 | 141.3 | 110 | 500 | 50 | 5 BCSG | 35 |
| 5 1/2 | 153.67 | 112 | 530 | 55 | 5 1/2BCSG | 35 | |
| 7 | 194.46 | 162.5 | 586 | 77 | 7 BCSG | 35 | |
| 9 5/8 | 270 | 225 | 720 | 77 | 9 5/8 BCSG | 35 | |
| 13 3/8 | 365 | 319 | 720 | 77 | 133/8 BCSG | 35 | |
| 20 | 533.4 | 475 | 720 | 77 | 20 BCSG | 35 | |
