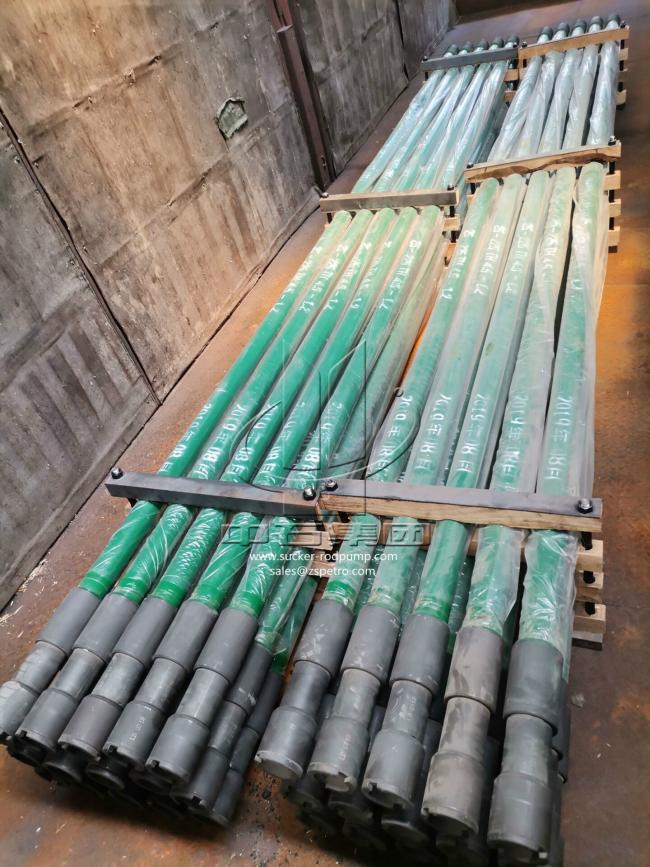

Oilfield 26ft Plunger API 11AX THM Type Well Pump Tubing
API 11AX Certified THM Type Well Pump Tubing
Oil well tubing pump description:
The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.
In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.
API-THM,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
Features
1. Well tubing pump's capacity is larger than sucker rod pump
2. Tubing pump is durable than sucker rod pump.
3. API 11AX standard oil production pumps
Technical parameter list
| Specification | pump diameter(in) | Barrel length(ft) | Plunger length(ft) | stroke length(ft) |
Tubing size EUE(in) |
| 20-175THM | Ø44.45 | 7-34 | 1-26 | 4-29 | 2 3/8" |
| 25-225THM | Ø57.15 | 2 7/8" | |||
| 30-275THM | Ø69.85 | 3 1/2" | |||
| 40-375THM | Ø95.25 | 4 1/2" |
