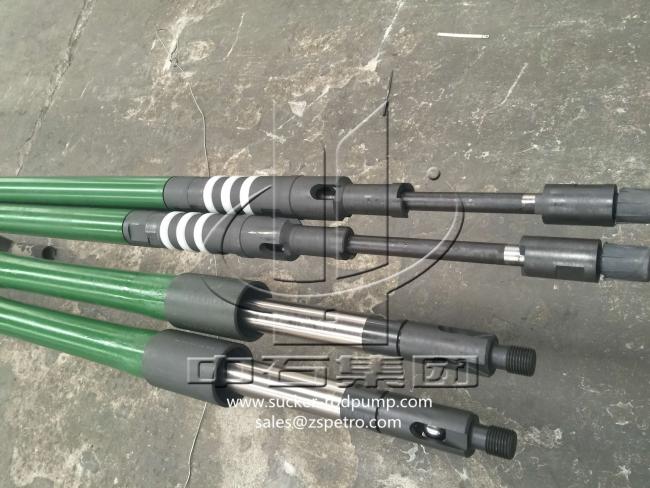

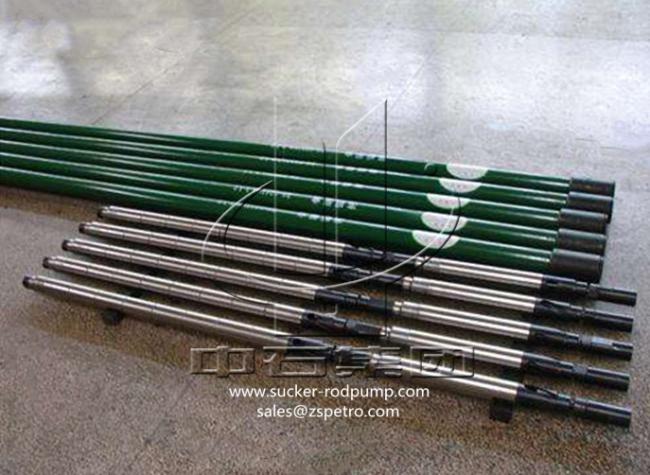

API Carbon Steel Sucker Rod Pump For Oil Field Drilling
1. Description
Surface of the plunger is coated with nickel alloy and inside wall of the barrel is coated with hardness chrome. all the main parts of valve case, ball and seat are made of strong corrosion-resisting and excellent mechanical properties material.
2. Characteristics
1. API Spec. 11 AX
2. Chrome plated barrel
3. Nickle sprayed plunger
4. Material: 1045#steel
5. Technology: Chrome plated, spray metal coated
| 型号Model |
公称直径,mm Nominal Dia. (in) |
柱塞长度,m Plunger Length(ft) |
冲程,m Stroke |
泵常数,m3/d Pump Constant |
连接油管螺纹 Tubing and Thread |
连接抽油杆,in Sucker Rod |
| 25-112RHAC/M | 28(1.12) |
1.2–1.8 (4–6) |
≤9.3 | 0.92 | 2-7/8 | 3/4 |
| 20-125RHAC/M | 32(1.25) | 1.14 | 2-3/8 | 3/4 | ||
| 25-150RHAC/M | 38(1.50) | 1.64 | 2-7/8 | 3/4 | ||
| 25-175RHAC/M | 44(1.75) | 2.24 | 2-7/8 | 3/4 | ||
| 30-225RHAC/M | 57(2.25) | 3.69 | 3-7/8 | 3/4 | ||
| 20-125RHBC/M | 32(1.25) | 1.14 | 2-3/8 | 3/4 | ||
| 25-150RHBC/M | 38(1.50) | 1.64 | 2-7/8 | 3/4 | ||
| 25-175RHBC/M | 44(1.75) | 2.24 | 2-7/8 | 3/4 | ||
| 30-225RHBC/M | 57(2.25) | 3.69 | 3-1/2 | 3/4 | ||
| 20-125RHTC/M | 32(1.25) | 1.14 | 2-3/8 | 3/4 | ||
| 25-150RHTC/M | 38(1.50) | 1.64 | 2-7/8 | 3/4 | ||
| 25-175RHTC/M | 44(1.75) | 2.24 | 2-7/8 | 3/4 | ||
| 30-225RHTC/M | 57(2.25) | 3.69 | 3-1/2 | 3/4 |
Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise
of Central Plains oilfield branch company of SINOPEC . The company registered capital is
60.83 million yuan, with annual output value 200 million yuan, 580 employees, including
more than 160 technical and administrative staff . Oil machinery is our main products, the
leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas
Tree), pressure vessels, drilling solid control series products and cementing accessories. We
had attained ISO 9001 in 1998 and API Certificates in 2002 .
