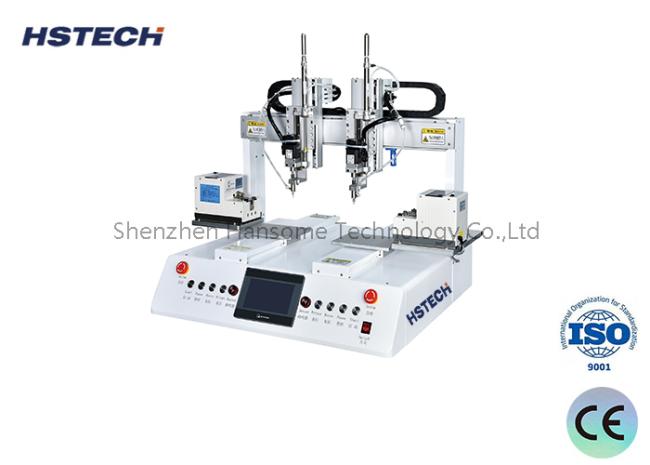

High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder
Price:
Negotiable
MOQ:
1 set
Delivery Time:
7~9 work days
Brand:
HSTECH
Product Description
High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder
Introduction
The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time. Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.
Specification
| Model | HS-DH6331 | |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 600*300*300*100*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension8 | 880*585*800mm | |
| Machine weight | 120kg | |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
1. Feeding system: adopting suction feeding technology, single screw and single lock to ensure stable and efficient feeding.
2. Operation interface: desktop visual interface, easy to operate, can be connected with automatic production line.
3. Six-axis control: wide range of movement to meet complex processing needs.
4. Multi-screw silo: improve feeding efficiency and flexibility.
5. Dual station: improve productivity and reduce cost.
6. Adaptable: Quickly change screw guides to adapt to different specifications.
7. Convenient operation: simple interface, can operate multiple machines at the same time.
8. File storage: large capacity storage, support hundreds of files, easy to call.
2. Operation interface: desktop visual interface, easy to operate, can be connected with automatic production line.
3. Six-axis control: wide range of movement to meet complex processing needs.
4. Multi-screw silo: improve feeding efficiency and flexibility.
5. Dual station: improve productivity and reduce cost.
6. Adaptable: Quickly change screw guides to adapt to different specifications.
7. Convenient operation: simple interface, can operate multiple machines at the same time.
8. File storage: large capacity storage, support hundreds of files, easy to call.
