Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws
Price:
Negotiable
MOQ:
1 set
Delivery Time:
7~9 work days
Brand:
HSTECH
Product Description
Screw Fastening Machine and Stability Omron Photoelectric Switch 500*500*100mm 50/60Hz
Introduction

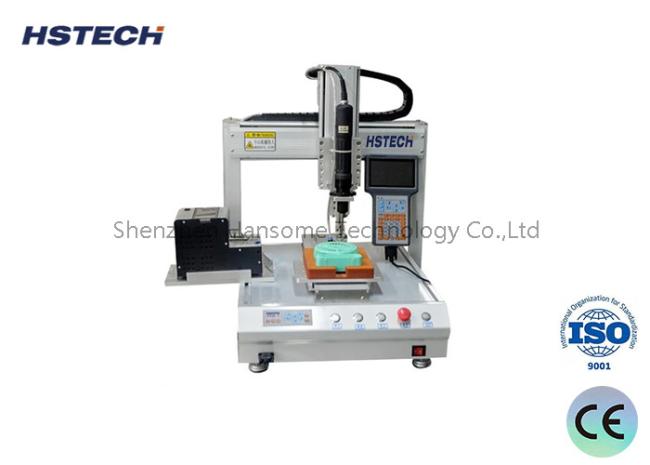

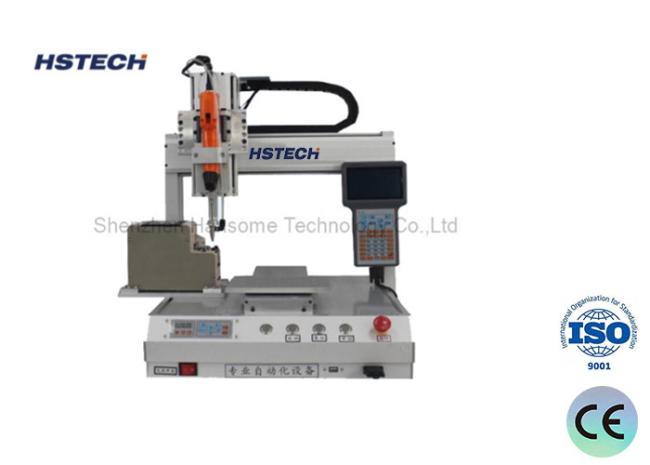

This Screw Fastening Machine combines a feeder and a locking system in one, and its feeding part (i.e. screw arranger or feeder) not only optimises the screw arranging process, but also significantly improves the working efficiency. As a widely used automation machine in the electronics industry, it is particularly suitable for handling screws from M1 to M6.
Specification
| Model | HS-SL551S | HS-SL661S |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
1. High-efficiency suction screw feeding for enhanced efficiency.
2. Desktop visualisation operation, compatible with automatic line.
3. Move range optional: 500x500x100mm/600x600x100mm.
4.Support multi-screw suction.
5. Wide range of application.
6. Can be equipped with multi-axis, double platform and other devices.
7. Multiple editing, copying programme and other functions.
8. Offline download parameters, support manual control handle storage call.
9. Powerful storage capacity, support hundreds of files, each file up to 1000 screw bits.
2. Desktop visualisation operation, compatible with automatic line.
3. Move range optional: 500x500x100mm/600x600x100mm.
4.Support multi-screw suction.
5. Wide range of application.
6. Can be equipped with multi-axis, double platform and other devices.
7. Multiple editing, copying programme and other functions.
8. Offline download parameters, support manual control handle storage call.
9. Powerful storage capacity, support hundreds of files, each file up to 1000 screw bits.
