Screw Fastening Machine Compact Screw Feeder Omron Photoelectric Switch
Price:
Negotiable
MOQ:
1 set
Delivery Time:
7~9 work days
Brand:
HSTECH
Product Description

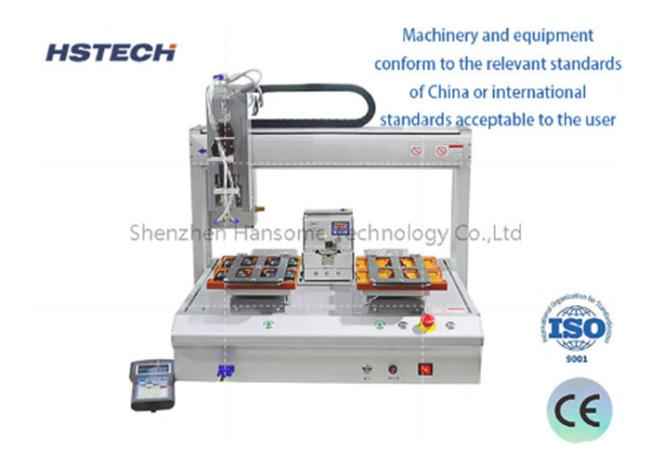

High Speed Automatic Screw Fastening Robot | Omron Photoelectric Switch | 600*600*100mm | 50/60Hz
Introduction

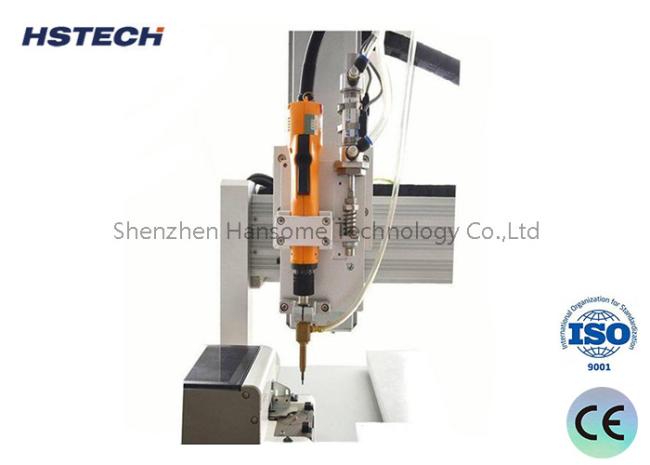

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.
Specification
| Model | HS-SL551S | HS-SL661S |
| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
Features
1.Suction feeding for efficiency gains.
2.Desktop visibility, integrates with auto production lines.
3.Moving range: 500x500x100mm or 600x600x100mm.
4.Multiple screw bins supported in suction mode.
5.Extends to dispensing, welding, testing, handling, assembly.
6.Multiple axis & double platform options available.
7.Features array & platform replication, batch editing, single-step operation.
8.Offline operation with serial port & handheld box for parameter storage & recall.
9.Stores hundreds of files, each supporting 1000 screw bits for easy access.
2.Desktop visibility, integrates with auto production lines.
3.Moving range: 500x500x100mm or 600x600x100mm.
4.Multiple screw bins supported in suction mode.
5.Extends to dispensing, welding, testing, handling, assembly.
6.Multiple axis & double platform options available.
7.Features array & platform replication, batch editing, single-step operation.
8.Offline operation with serial port & handheld box for parameter storage & recall.
9.Stores hundreds of files, each supporting 1000 screw bits for easy access.
