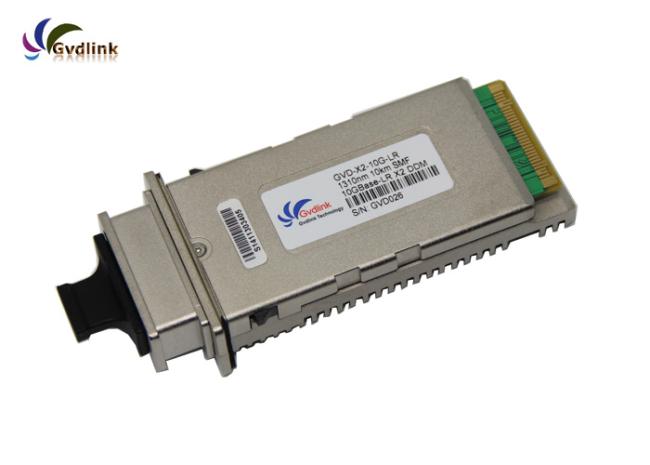

X2-10GB-LR compatible 10G X2 1310nm 10KM SMF Transceiver

10Gb/s X2 transceiver module GVD-X2-10GB-LR is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA. The GVD-X2-10GB-LR is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR).This version of XGIGA Inc. transceiver line uses an uncooled 1310nm DML Laser Diode to achieve 10km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.

Features

• Operating data rate up to 10Gb/s

• Very low EMI and excellent ESD protection

• Hot Pluggable X2 footprint

• Single 3.3V Power supply and TTL logic Interface

• Duplex SC Connector Interface

• RoHS compliant(lead-free)

• Operating termperature: 0~70 C., -10~80 C, -40~85 C

Advantages

• Full product line

• High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
• 100%tested

• fast delivery

• 3 year Warranty

Applications

• 10G Channels

• Other 10Gbps Networking Optical links

• Networking , Storage, Telecommunications

• Hub, Switches, Routers, Servers, Network Interface Card (NICs)

Our Normal X2 product series

OEM and ODM

OEM / ODM order is available

we can supply products according to your requirements , and design products label for your company .

Shipment

International Express : DHL , FedEx , EMS , SF , ARAMEX , TNT , UPS and so on . It takes 2-7 days .

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts all new materials . All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we focus

We focus on all kinds of compatible optical transceiver modules , including SFP , GBIC , SFP+ , XENPAK , X2 , XFP , BIDI , CWDM , DWDM and other special transceiver modules. Our products are compatible with Cisco , H3C , Ciena , HP , Extreme , Foundry , Avaya, D-link , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .

Our product line show

Introduce

Gaveid communication Technology Co.,Limited ( Gvdlink Technology), Founded in 2008. Our company has been serving customers in the business tenet and business philosophy of “high quality and excellent sales service”, winning unanimous praise and recognition of peers.
