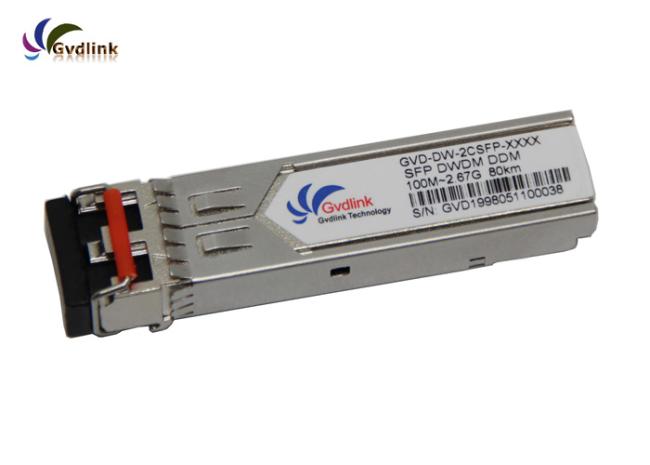

DWDM-2CSFP-xxxx Compatible 155M~2.67G DWDM SFP 80km Transceiver

Description

      Gvdlink DWDM SFP Transceiver exhibits excellent wavelength stability , supporting operation at 100 GHz channel , cost effective module . It is designed for DWDM SONET/ SDH , Gigabit Ethernet and Fiber Channel applications . The transceiver consists of two sections : The transmitter section incorporates a colded DFB laser . And the receiver section consists of a APD photodiode integrated with a TIA . All modules satisfy class I laser safety requirements . Gvdlink DWDM SFP transceiver provides an enhanced monitoring interface , which allows real-time access to device operating parameters such as transceiver temperature , laser bias current , transmitted optical power , received optical power and transceiver supply voltage , laser temperature and TEC current.

​Our SFP DWDM product series

"xxxx" meaning the wavelengths , example"xxxx=1558.17"

Features

• all Wavelength selectable to C-band ITU-T grid wavelengths

• Suitable for use in 100GHz channel spacing DWDM systems

• DWDM SFP MSA Compliant

• Up to 2.67Gb/s data rate
• OC48 Long Reach 80km
• Cold Start up Wavelength Compliance
• Low Power Dissipation <1.3W Maximum
• Extended link budget with APD receiver technology
• -5ºC to 70ºC Operating Case Temperature

• Diagnostic Performance Monitoring of module temperature , supply Voltages , laser bias current , transmit optical power , receive optical power , laser temperature and TEC current

• RoHS compliant and lead free

Applications

• SFP Transceivers for DWDM SONET/ SDH

• Networking , Storage , Telecommunications

• Hub , Switches , Routers , Servers , Network Interface Card (NICs)`

• Other 2.5Gbps DWDM Networking Optical links

Our Advantage

1.100% Cisco original factory sealed clean serial.
2. Extensive Real Inventory
3. Save up 50%-92% off the Global Price list
4. Flexible payment shipment
5. Unparalleled Experience Service

Our Services

1. Warranty

three years Warranty, three monthes free exchange and one year free repairing.

2. OEM, ODM are welcome.

3. Free sample will be provided.

Free samples under a certain value are available,with freight cost collect.

4. Any Inquire is welcome.

Any inquire will be replied within 24 hours.

5. After-sales service.
a. From the beginning of production till the successful delivery, we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection, please feel free to contact us, we'll provide solution.

What we focus

We focus on all kinds of compatible optical transceiver modules , including GBIC , SFP , SFP+ , XFP , XENPAK , X2 , BIDI , CWDM,DWDM and other special transceiver modules . Our products are compatible with Cisco , Ciena , H3C , Extreme , HP , Foundry , D-link , Avaya , Alcatel , Riverstone , Enterasys , Netgear , Nortel , Juniper , Ruijie , Zyxel , Huawei , etc .
