5m 100G QSFP28 Direct Attach Cable

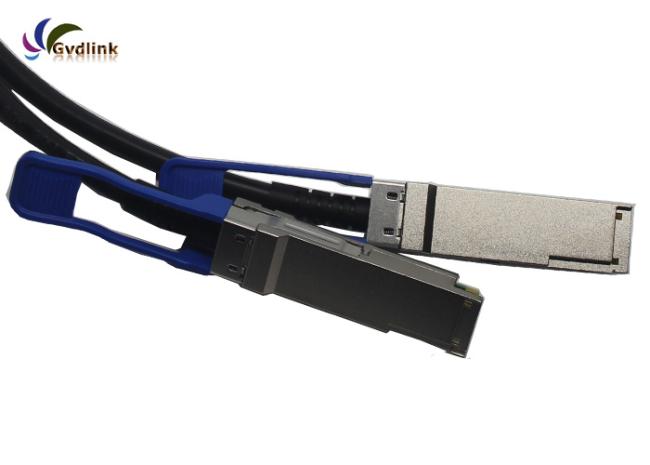

QSFP-100G-CU5M Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable 5m
Description
Gvdlink QSFP to QSFP copper direct-attach 100GBASE-CR4 cables are suitable for very short links and offer a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks. Gvdlink currently offers passive copper cables in lengths can be 1 , 2 , 3 and 5 meters.
Features
- Functionally identical to QSFP-100G-CU5M
- Connector 1x QSFP28 100Gbps Rated Connector
- 4 independent full-duplex channels
-
Compliant with SFF-8665/SFF-8679
- Compliant with IEEE 802.3bj
-
Temperature Range: 0~ 70 °C
- Single 3.3V power supply
- ROHS Compatible
Our QSFP28 100G cables product series
| Model | Specification |
| QSFP-100G-CU1M | 100GBASE-CR4 Passive Copper Cable 1M |
| QSFP-100G-CU2M | 100GBASE-CR4 Passive Copper Cable 2M |
| QSFP-100G-CU3M | 100GBASE-CR4 Passive Copper Cable 3M |
| QSFP-100G-CU5M | 100GBASE-CR4 Passive Copper Cable 5M |
| QSFP-4SFP25G-CU (1M , 2M , 3M , 5M) |
100GBASE QSFP to 4xSFP25G Passive Copper Splitter Cables |
| QSFP-100G-AOC (1M , 2M , 3M , 5M , 7M , 10M , 15M, 20M , 25M , 30M) |
100GBASE QSFP Active Optical Cables |
Advantages
- 100%tested
- High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
- Fully product line
- 3 year Warranty
- very fast delivery
Applications
-
100G Ethernet (100GBASE-CR4)
Intra-Rack System , Top of Rack (ToR) , Middle of Rack (MoR) -
Data centers
-
Switch , Storage , Server , NIC
