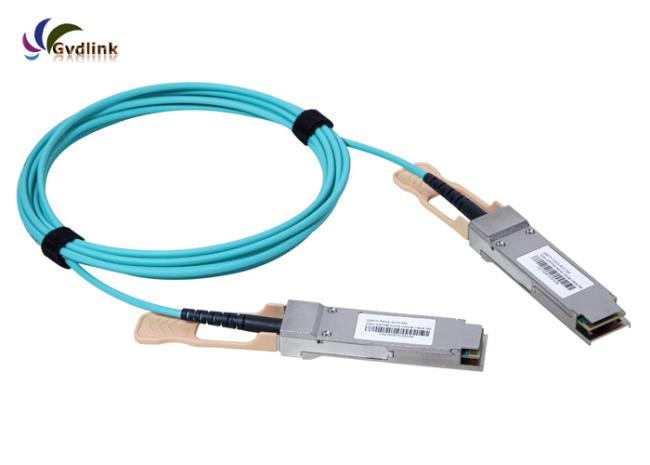

QSFP-100G-AOC1M Compatible 100G QSFP28 Active Optical Cable 1m

Description

this QSFP28 Active Optical Cable  is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC is terminated with a QSFP28 module at one end and four SFP28 modules at the other. With the QSFP28 terminal, it offers 4 independent data transmission chanels and 4 data receiving channels via multimode ribbon fibers, each capable of 25Gb/s operation. The fiber ribbon then fans out to four fiber cables, each of which is terminated with an SFP28 module. Consequently, an aggregate data rate of 100Gb/s over up to 100m transmission can be achieved by this product, to support the ultra-fast computing data exchange. The product is designed with form factor, optical/electrical connection according to the QSFP28 and SFP28 Multi-Source Agreements (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features

• Functionally identical to QSFP-100G-AOC1M
• Connector  1x QSFP28 100Gbps Rated Connector

• Compliant with SFF-8665/SFF-8679

• Compliant with IEEE 802.3bj

• Single 3.3V power supply

• Temperature Range: 0~ 70 °C
• ROHS Compatible

​Our QSFP28 100G Active optical cables product series

Advantages

• High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
• Fully product line
• 100%tested
• very fast delivery
• 3 year Warranty
•

Applications:
● 100G Ethernet

● High performance computing interconnect

● InfiniBand EDR interconnect

● 40G/100G Ethernet interconnect

Our product line show
