2.2dB 8 Channel Dwdm Mux
Customized Compact CWDM Mux Demux 8 channels 2.2dB Max IL Single Fiber Side-B
Decription

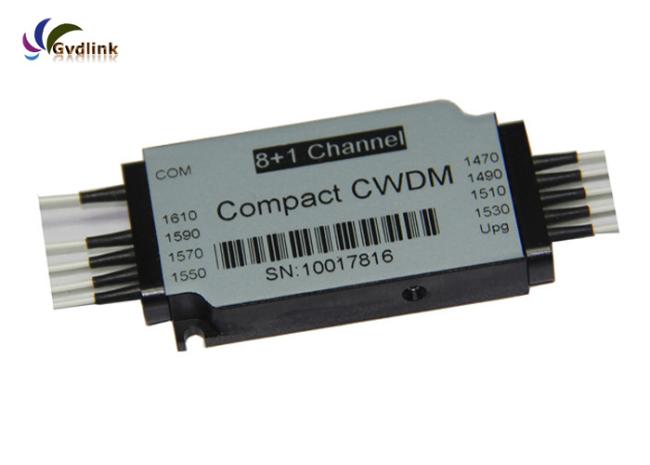

Based on thin film filter, the Gvdlink Mini 8CH CCWDM (Compact CWDM) MUX/DEMUX is a 8-channel CWDM device with super compact package designed for cost-effective multi-wavelength CWDM network applications. I It operates at 20nm channel spacing ITU Grid CWDM wavelengths from 1270nm to 1610nm.
Features
- Low Insertion Loss
- High Isolation
- Compact Design
-
Low PDL
- Good Channel-to-channel Uniformity
-
Wide Operating Wavelength: 1260nm~1620nm or 1460nm~1620nm
- High Reliability and Stability
- Wide Operating Temperature: -40℃~85℃
- RoHS compliant and lead free

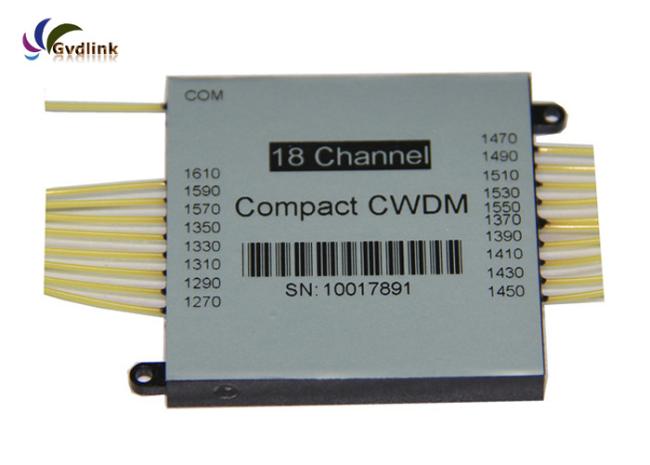

Our Compact CWDM MUX /DEMUX product series
| Model | Description | CH Qty |
| GVD-CC02M-4749 | 2ch Compact CWDM Mux module 1470nm to 1610nm 2.0mm fiber | 2 |
| GVD-CC04M-4753 | 4ch Compact CWDM Mux module 1470nm to 1610nm 2.0mm fiber | 4 |
| GVD-CC06M-4757 | 6ch Compact CWDM Mux module 1470nm to 1610nm 2.0mm fiber | 6 |
| GVD-CC08M-4761 | 8ch Compact CWDM Mux module 1470nm to 1610nm 2.0mm fiber | 8 |
| GVD-CC09M-4761 | 9ch Compact CWDM Mux module 1470nm to 1610nm 2.0mm fiber | 9 |
Advantages
- Fully product line
- High Quality with ISO9001 , CE , TUV , FCC and RoHS certificates
- 100%tested
- very fast delivery
- 3 year Warranty
Applications
-
CWDM System
-
CATV Links
-
PON Networks
OEM and ODM
OEM and ODM order all are available .
What we focus
We focus on all kinds of compatible optical transceiver , including SFP , SFP+ , XFP , XENPAK , X2 , QSFP and CWDM MUX/DEMUX
DWDM AAWG MUX and other passive components . we can design the fully solution for your network syestem.
