CWDM OADM Customized Single Fiber East and West​ 1/2/4 Channels Optional Connectors and Housing

Decription

         Gvdlink CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Through the use of CWDM technology, individual channels can be optically extracted from a fiber pair while allowing pass-through traffic to continue unobstructed through the bus or ring.

CWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations supporting up to four wavelengths. Each CWDM OADM uses wavelengths that fall within the ITU-T G.694.2 CWDM grid standard from 1270nm to 1610nm with 20nm spacing.

Gvdlink CWDM OADM are modular, scalable and are perfectly suited to 10/1G Ethernet, 16/8/4/2/1G FC, SDH/SONET, Video, CATV, FTTx applications

Features

• Low Insertion Loss
• High Isolation

• Low PDL

• Compact Design
• Good Channel-to-channel Uniformity

• Wide Operating Wavelength: 1260nm~1620nm or 1460nm~1620nm

• Wide Operating Temperature: -40℃~85℃
• High Reliability and Stability
• RoHS compliant and lead free

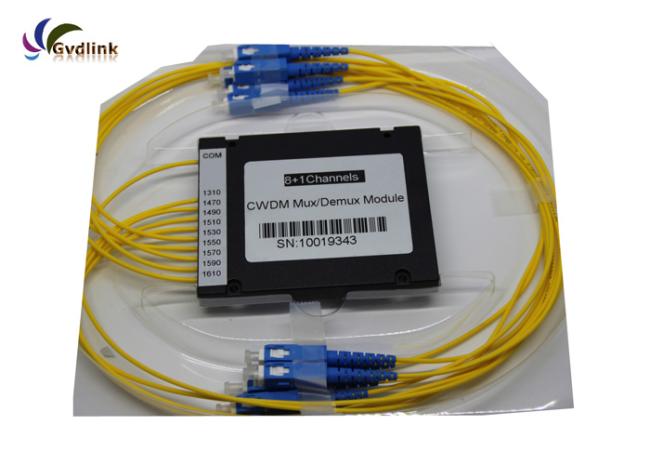

​Our CWDM OADM product series

Applications

• Optical Add / Drop Multiplexing

• CWDM System

• Telecommunications

• CATV Links

OEM and ODM

OEM and ODM order all are available .

Shipment

International Express FedEx  , DHL , UPS , SF , EMS , TNT and so on . It takes 3-8 days

Guarantee

 We will provide 5 year warranty for all the optical transceivers from the date of shipment .

What we focus

We focus on all kinds of compatible optical transceiver , including  SFP , SFP+ , XFP , XENPAK , X2 ,  QSFP and  CWDM MUX/DEMUX

DWDM AAWG MUX and other passive components . we can design the fully solution for your network syestem.

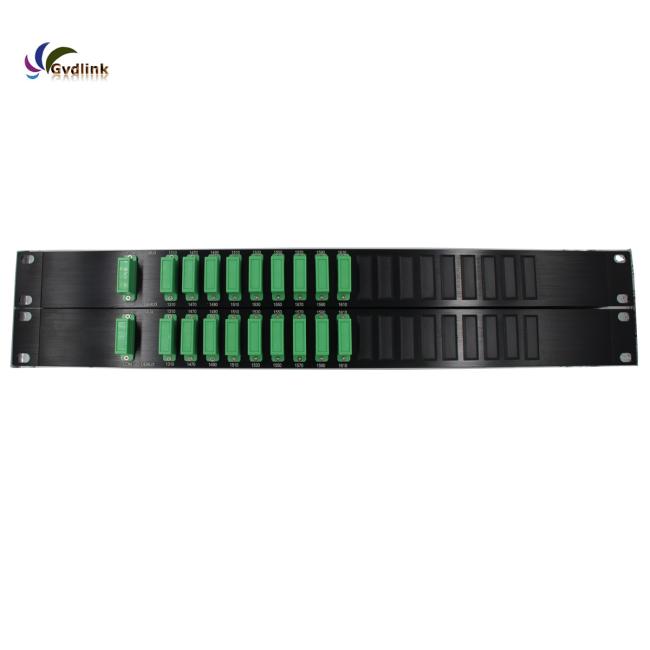

Our product line show
