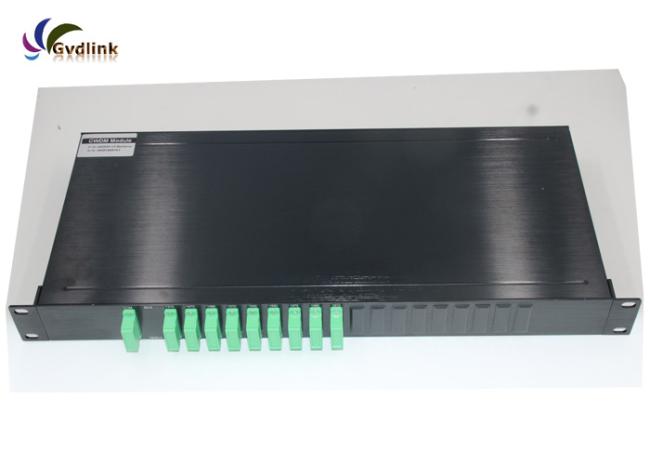

Customized Dual Fiber DWDM OADM

Decription

          DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers , while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effctively WDM capability to their existing and new networks , and extend the optical signals transmission distance.

          DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations . With matching MUX/DeMUX units placed at each end of an optical link , multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.

          Gvdlink DWDM OADM are modular , scalable and are perfectly suited to 10/1G Ethernet , 16/8/4/2/1G FC , SDH/SONET , Video , CATV , FTTx applications .

Features

• Low Insertion Loss
• High Isolation

• Low Polarization Dependent Loss PDL

• Compact Design
• Wide operating wavelength range
• High Reliability and Stability

• Telcordia GR-1209-CORE-2001 compliant

• Telcordia GR-1221-CORE-1999 compliant

• ITU-T G.694.1 compliant

• RoHS compliant and lead free

​Our DWDM MUX DEMUX product series

Applications

• Optical Add/Drop Multiplexing

• DWDM Systems

• Telecommunications

• Metro Area Networks

OEM and ODM

we can supply products according to your requirements , and design products label for your company .

OEM and ODM order all are available .

Guarantee

We will provide 5 year warranty for all the DWDM /CWDM MUX DEMUX product and the from the date of shipment .

What we focus

We focus on all kinds of compatible optical transceiver , including  SFP , SFP+ , XFP , XENPAK , X2 ,  QSFP and  CWDM MUX/DEMUX

DWDM AAWG MUX and other passive components . we can design the fully solution for your networking syestem .
