P9H32A Compatible 32G Fiber Channel SFP+ 850nm 100m DOM Transceiver module

Features
● Supports up to 32Gbps bit rates

● Hot-pluggable SFP+ footprint

● 850nm VCSEL laser and PIN photodiode, Up to 100m for MMF transmission

● Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

● Built-in digital diagnostic functions

● Single +3.3V power supply

● Metal enclosure,for lower EMI

● ROHS compliant and lead-free

● Operating Temperature: Standard 0~70ºC, Extended -10~85ºC, Industrial -40~85ºC

Applications
● 4G/8G/16G/32G Fibre channel

Ordering information

Description
Gvdlink’s 32G SW is a small form factor pluggable SFP+ transceiver module for 32G Fibre Channel (16GFC) long reach applications.

It supports links up to 100m over Multi-Mode fiber (MMF). This module features a highly reliable 850nm VCSEL laser transmitter and

PIN photo-detector into a duplex LC optical connector. The 16G  SFP+ LW is a multi-rated 1310nm . It complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)

SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0. It’s suitable for use with SAN switches, routers, network interface cards (NICs) and

other storage networking equipment.

         There are three versions of this series 32G Fibre Channel SFP+SW transceiver for different applications. The
Standard grade (0~70ºC) is for commonly commercial application, the Extended grade (-10~85ºC) is for Extended
temperature application, and the Industrial grade (-40~85ºC) is made with robust and reliable components to meet the
needs of Industrial application under harsh environmental conditions.

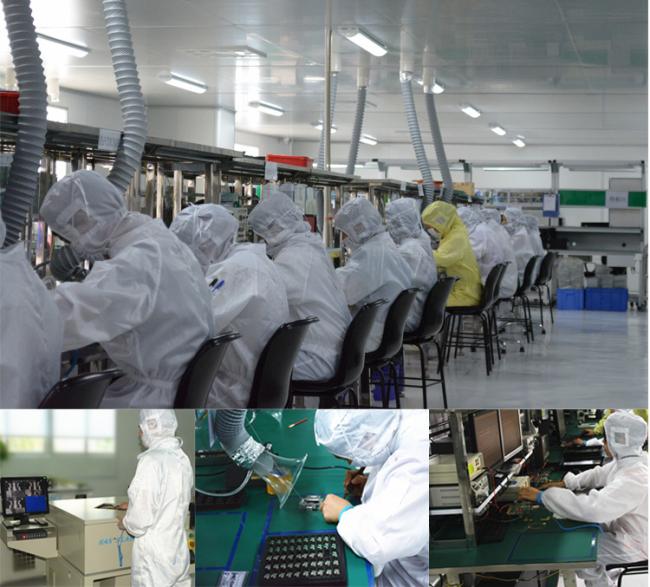

Our factory show case

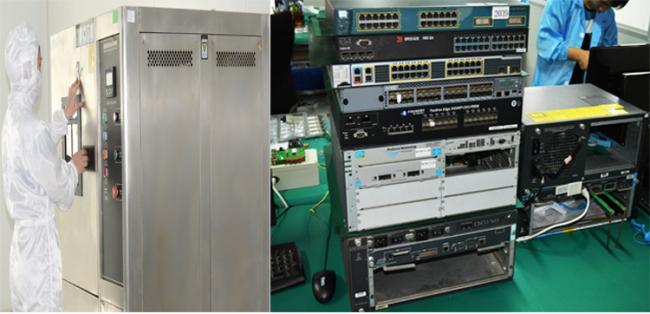

Our quality control

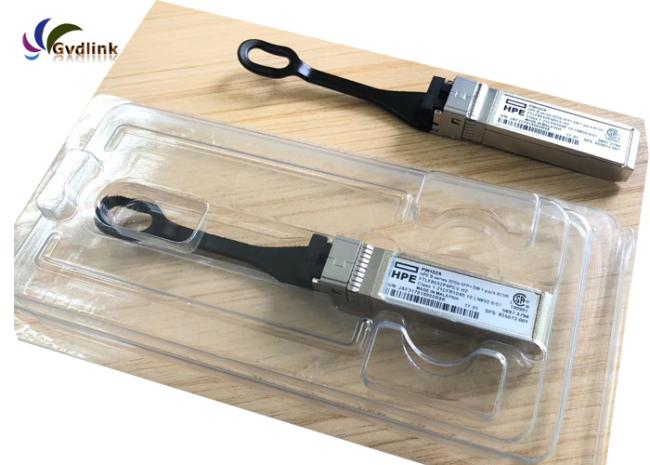

Our product line show

FAQ

Q1.Can I have a sample order? What is your MOQ?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

Q2. How does your company do regarding quality control?

A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment

Q3. What are the trade terms?

A3: Lead Time: most popular optics in stock ,ready to ship. some of higher-value and specialize optics have a short lead time.

Payment term: Western union, T/T, Aliexpress escow, money gram ,cash payment

Warranty: 3 year

Q4. What is operating temperature range of optical modules?

A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5.Could I use our own logo, label and package?
A5: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
