12 FO Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized Multiple

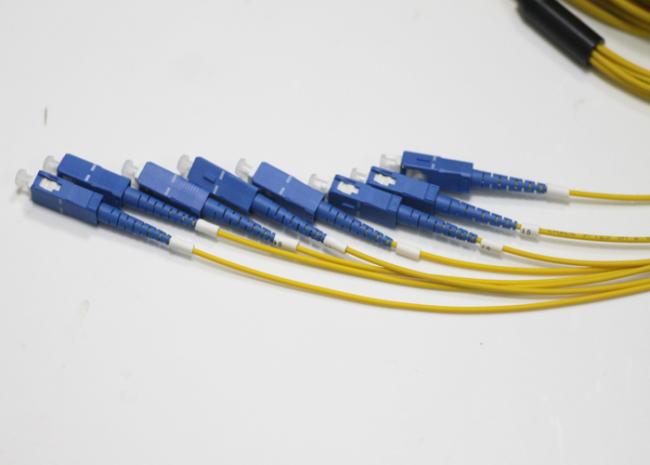

12 FO Fiber Optic Pre-connectorized Multiple SC UPC Trunk Cable
Item Description
The HANGALAXY Multifiber cable made by 900μm diameter optical patch cords helically wrapped on a central element. It is possible to order the cable with all available connectors.
Feature & Keyed Characteristic
● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.
Application
● Data center and TLC infrastructure.
● Internal optical links.
Technical Parameter
| CABLE | YELLOW FANOUT SINGLE-MODE | ||
| Applicable standards | CEI/EN 60793, CEI/EN 60794-1 | ||
| CONSTRUCTION PERFORMANCE | |||
| Pulling load resistance (N) | 4-6 fo: 600 / 800 | 8 – 12 – 16 fo: 1.000 / 1.500 / 2000 | 18 - 48 fo: 2.000 / 2.500 |
| Crush resistance (N/cm) | Da 200 a 250 | ||
| Static bending radius (mm) | 10 times x outer diameter | ||
| Dynamic bending radius (mm) | 20 times x outer diameter | ||
| Temperature (°C) | -20 / +80 | ||
| Installing temperature (°C) | -10 / +60 | ||
| Temperature (°C) | -20 / +80 | ||
| MATERIALS | |||
| Outer sheath | LSZH (yellow RAL 1018) | ||
| External sheath of single fiber | LSZH (yellow RAL 1018) | ||
| Secondary sheath of single fiber | Nylon - SEMITIGHT | ||
| Strenght member | Aramid yarns | ||
Specifications
| Clad Diameter | 125 Micron |
| Core Diameter | 62.5 Micron |
| No. Of Fiber | 12 |
| Technology | Mode Conditioning |
| Push/Pull Tabs | No |
| Weight (Lbs) | 0.09 |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |

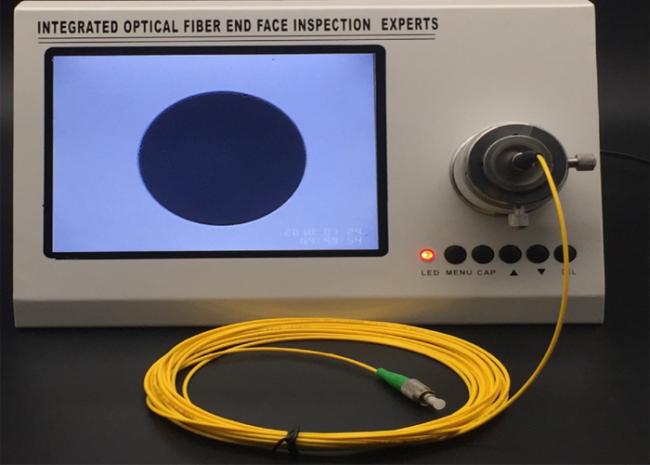

Hangalaxy Workshop
Packing Information
1PCS Each Individual Quality PE Bag
If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
