LC Duplex MM OM3 50um 2F Zipcord Riser Pre Terminated Cable
Fiber Optic Cable LC Duplex MM, OM3 50um, 2F, Zipcord Riser Pre Terminated LSZH Cable
This cable is factory made, quality controlled fibre optic assembly is specified for short internal optical links. The 900μm tight buffer presentation lends itself to installation within a patch panel, wall box or Optical Distribution Frame (ODF). Crush resistant protective tubing assures secure transportation and installation. The high strength pulling element allows fast, safe and effective pulling. The overall assembly and packing are light and compact, reducing transport cost and storage space. Installation waste is also reduced. A unique link loss certificate accompanies all multifiber assemblies.
Feature & Keyed Characteristic
● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.
● Application
√ Data centers.
√ Structured cabling systems.
√ LAN interbuilding installations (Campus) 1, 10, 40 and 100 Gbps applications.
√ Security and transport systems.
√ Community access television (CATV) & multi-system operator (MSO).
√ Central office and local loop.
Item Description

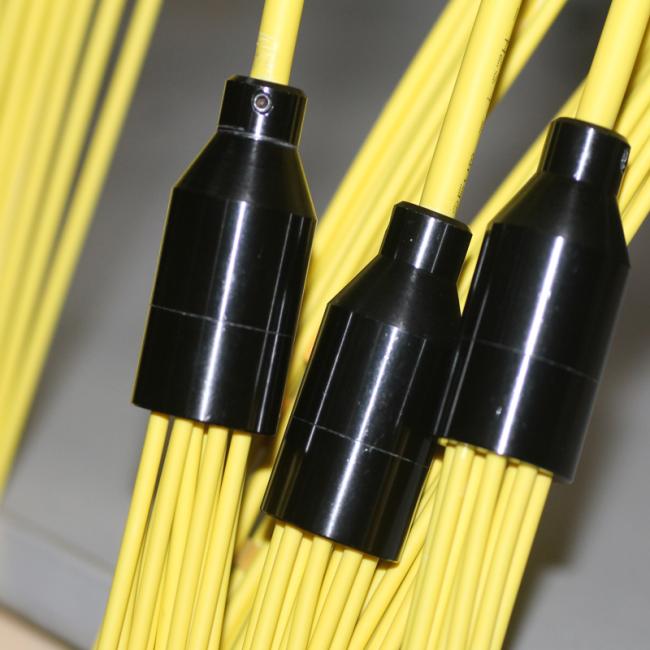

The Hangalaxy Multifiber cable made by 900μm diameter optical patch cords helically wrapped on a central element. It is possible to order the cable with all available connectors.
Technical Parameter
| Specification | Value |
| Fibre Grade | OS1/OS2, G.657A1, OM1, OM2, OM3, OM4 (ISO/IEC) |
| Cable Specification |
Tight buffer 4, 8, 12 and 24 cores (ISO/IEC 60794) Max OD 24 cores 6.5 ± 0.2 |
| Connectors | IEC 61753, IEC 61754, IEC 61755 |
| Pulling Element |
a) No pulling element: length < 20mtr b) A side pulling element: length ≥ 20mtr |
| Packaging |
Length ≤ 100 Coil in heavy duty polymer bag Length > 100 Drum |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
| Cable Color | Yellow, Black, Aqua or customized |
| Application | Indoor / Outdoor |
Application in the field
Fiber Optic Patch Cord, Multi-fiber, Singlemode, 4 fibers, SC/UPC to SC/UPC, yellow, 16 m
